Compensator, location/task - GF82.70-P-3109SK
MODEL 171.4 with CODE (386) Preinstallation for telephone "Handy", UPCI system
MODEL 171.4 with CODE (388) Telephone "Handy", UPCI system
MODEL 171.4 with CODE (494) USA version

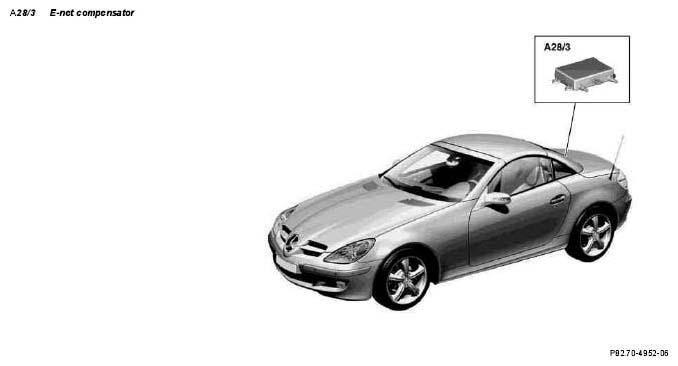

| Compensator, location | The E-net compensator (A28/3) is located in the luggage compartment on the equipment bridge. |
| Compensator, purpose | The E-net compensator (A28/3) compensates for the losses that occur during a telephone call because of the higher transmission frequency of the E-net. |
