CD player with changer, location/task/design/function as of 1.6.05 with CODE (819) - GF82.64-P-3113SKA

Model 171.4 as of 1.6.05 with CODE (819) 6-disk CD changer

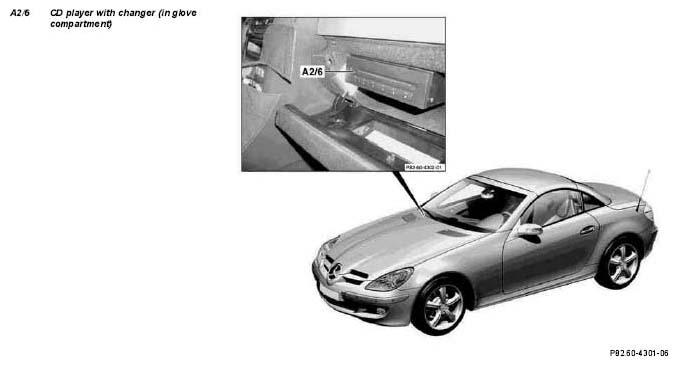

Fig 1: Identifying CD Player With Changer Location
G05030598Courtesy of MERCEDES-BENZ USA
CD player with changer, location The CD player with changer (in glove compartment) (A2/6) is located in the glove compartment on the passenger side.
CD player with changer, purpose
  • Playing audio CDs (MP3-capable)
  • Transmitting audio signals in stereo, Dolby surround
  • Storage of a maximum of 6 CDs in a central insertion slot
CD player with changer, design
  • Central insertion slot for 6 CDs
  • 6 selection buttons
  • Wake-up line input
  • Own fault memory
CD player with changer, function The CD player with changer (in glove compartment) (A2/6) is actuated via the media-oriented system transport (MOST) and an electric wake-up lead and is operated by the corresponding control unit.
