Audio gateway control unit, location/task/design/function - GF82.62-P-3102SK: Notes

Model 171.4 with CODE (498) Japan version

Model 171.4 with CODE (525) MB Audio 50 APS radio

Model 171.4 with CODE (527) COMAND APS with single DVD drive (with navigation)

Model 171.4 with CODE (530) COMAND APS USA (with navigation system)

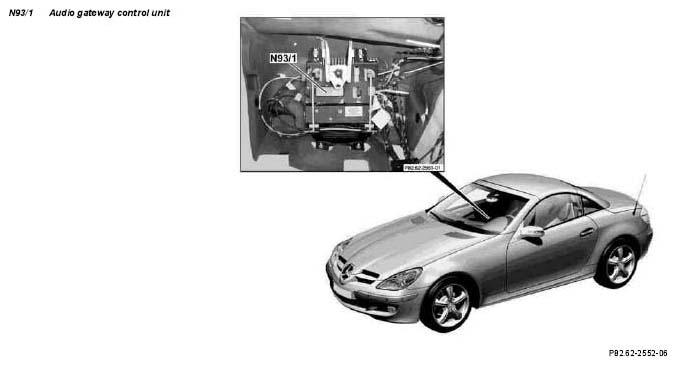

Fig 1: Identifying Audio Gateway Control Unit Location

Courtesy of MERCEDES-BENZ USA

Audio gateway control unit, location	The audio gateway control unit(N93/1) is located below the foot place in the front passenger footwell.
Audio gateway control unit, task	Central control of vehicle loudspeaker Muting Audio sources AM and FM receiver Central diagnostic interface
Audio gateway control unit, design		GF82.62-P-3102-03SK
Audio gateway control unit, function		GF82.62-P-3102-04SK
