Antenna amplifier module, location/purpose/design/function - GF82.62-P-3105SK: Notes

MODEL 171.4

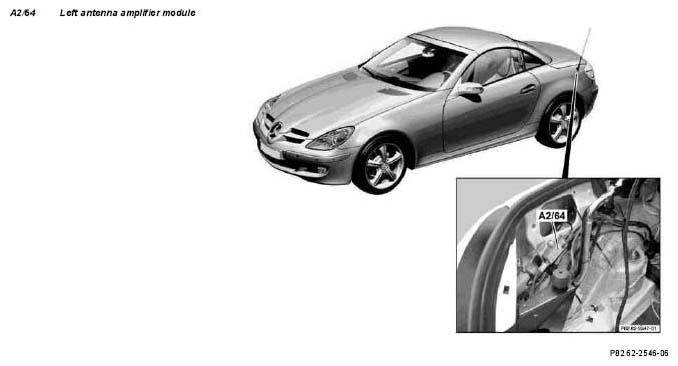

Fig 1: Identifying Antenna Amplifier Module Location

Courtesy of MERCEDES-BENZ USA

Antenna amplifier module, location	The left antenna amplifier module (A2/64) is installed on the rear wheelhouse on the left toward the front of the vehicle.
Antenna amplifier module, purpose	Amplification of radio signals Decoupling telephone signals Filtering out signals for central locking and transmission to rear SAM control module with fuse and relay module (N10/2).
Antenna amplifier module, design	The left antenna amplifier module (A2/64) includes corresponding components for filtering, amplifying and transmission of required signals.
Antenna amplifier module, function		GF82.62-P-3105-04SK
