Headlamp leveling system motor, location/task/design/function - GF82.10-P-2101R
MODEL 230 except CODE (487) Active Body Control (ABC)

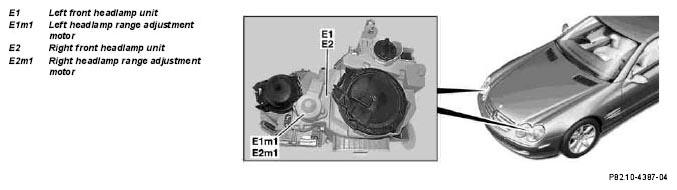

| Headlamp range adjustment motor, location | The left headlamp range adjustment motor (E1m1) is integrated in the left front lamp unit (E1), and the right headlamp range adjustment motor (E2m1) is installed in the right front lamp unit (E2). | ||
| Headlamp range control motor, purpose | The left headlamp range adjustment motor (E1m1) and the right headlamp range adjustment motor (E2m1) adjust the reflector incline angle depending on actuation from the xenon headlamp control unit. |
