Fog lamp actuation, function - GF82.10-P-3006R
MODEL 230
Function requirements
- Standing lamps or low beam On
For code (494) USA version for low beam On only
Function

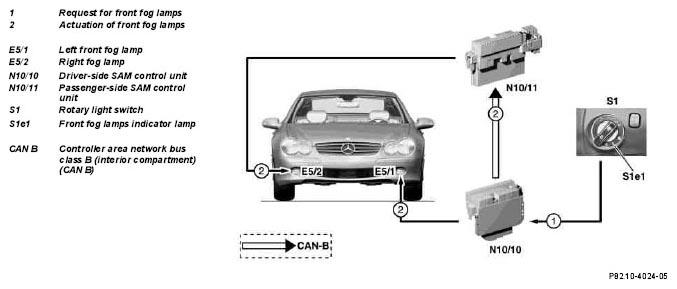

Pull rotary light switch (S1) out to "standing lamp" or "low beam" position to first detent.
The driver-side SAM control unit (N10/10) records the "front fog lamp On" signal and actuates the left front fog lamp (E5/1).
Parallel to this it also sends the "front fog lamp On" signal over CAN-B (CAN-B) to the passenger-side SAM control unit (N10/11). The passenger-side SAM control unit (N10/11) actuates the right front fog lamp (E5/2).
Feedback
The front fog lamps indicator lamp (S1e1) in the rotary light switch (S1) visually signals that the left front fog lamp (E5/1) and the right front fog lamp (E5/2) are switched on.
| Driver-side SAM control unit with fuse and relay module, location/task/design | GF54.21-P-4109R | ||
| Front passenger-side SAM control unit with fuse and relay module, location/task/design | GF54.21-P-4111R | ||
| Rotary light switch module, location/task/ design | GF82.10-P-4104R |
