Combination switch, location/task/design/function - GF82.30-P-2100R: Notes
MODEL 230

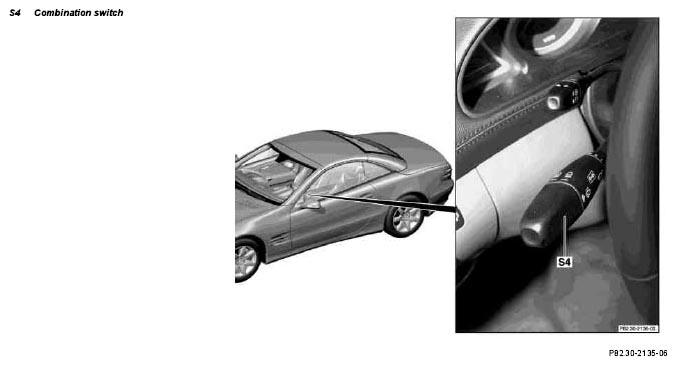

| Combination switch, location | The combination switch (S4) is located on the left side of the steering column. It is directly attached to the steering column module (N80). Contacting takes place using an integrated connector; i.e. no lines are needed. | ||
| Combination switch, purpose | The combination switch (S4) serves to operate the following systems: turn signal indicators, high and low beam, headlamp flasher, windshield wiper and windshield washer system. | ||
| Combination switch, design | The combination switch (S4) contains the following switch elements for: left and right turn signal indicators, headlamp flasher and high beam actuation, low beam, windshield washer system, horn contact, intermittent wiper, wipe, slow wipe, fast wipe and touch wipe. | ||
| Combination switch, function | GF82.30-P-2100-04R |
