Remove/install rear axle pressure reservoir - AR32.50-P-0011R (SL500, SL55 AMG 2003-2006, SL600 2004-2006, SL65 AMG 2005)
MODEL 230.474 /475 /476 /479
MODIFICATION NOTES
| 22.10.02 | Safety note, included for the first time | AS00.00-Z-0005-01A | |
| 22.10.02 | Notes on fitting hydraulic lines and hoses, included for the first time | AH32.50-P-0001-02A | |
| 5.3.03 | Value changed from 50 Nm to 45 Nm | Figure in Column 1001, 1002, 1003, 1012 Lines 1 and 2, 1013 on Model 230 has been revised | *BA32.50-P-1001-01A |
| 5.3.03 | Specification changed from 8 Nm to 9 Nm | Value revised in row 1004, 1008, 1015, 1016, 1017 on model 230 | *BA32.50-P-1015-01A |
| Remove/install | |||
|---|---|---|---|
| Risk of death cased by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury to skin or eyes caused by hydraulic fluid spraying out under pressure. Risk of poisoning caused by swallowing hydraulic fluid. | Depressurize the hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| Risk of injury when drilling gas-filled assemblies or components (gas filling cannot ignite) | Wear safety glasses and face mask. | AS00.00-Z-0006-01A | |
| Notes on active body control suspension | Models 215, 220, 230 | AH32.50-P-0001-01N | |
| 1 | Remove fender liner in left rear fender | AR88.10-P-1400R | |
| 2 | Relieve pressure in ABC system | AR32.50-P-0001-01N | |

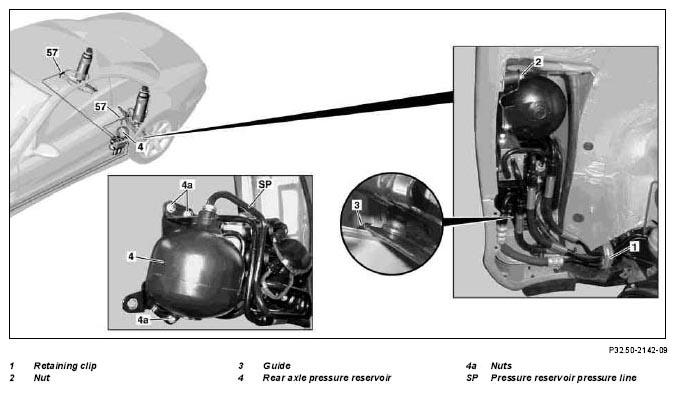

| 3 | Detach retaining clip (1) of pressure lines | ||
| 4 | Unscrew nut (2) and pull carrier plate out of guide (3) | ||
| *BA32.50-P-1016-01A | |||
| 5 | Disconnect pressure line for pressure reservoir (SP) from rear suspension pressure reservoir (4) | *BA32.50-P-1001-01A | |
| Notes on fitting hydraulic lines and hoses | Models 215, 220, 230 | AH32.50-P-0001-02A | |
| 6 | Unscrew nuts (4a) and remove rear axle pressure reservoir (4) | *BA32.50-P-1015-01A | |
| Notes on scrapping gas-filled hydraulic components | all | OS00.00-P-1000-01A | |
| Disposing on spring actuator | OS32.30-P-0620-01A | ||
| 7 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns when working in engine during starting procedure | Secure vehicle to prevent it from moving. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 8 | Fill and bleed ABC system | AR32.50-P-0021N |
ACTIVE BODY CONTROL SUSPENSION
| Number | Designation | Model 230 | |
|---|---|---|---|
| BA32.50-P-1001-01A | Union nut, line to pressure reservoir | Nm | 45 |
| BA32.50-P-1015-01A | Nut, rear axle pressure reservoir to carrier plate | Nm | 9 |
| BA32.50-P-1016-01A | Nut, carrier plate to rubber buffer | Nm | 9 |
