Remove/install oil cooler - AR32.50-P-0020R
MODEL 230 with CODE (487) Active Body Control (ABC)
MODIFICATION NOTES
| 22.10.02 | Safety note, included for the first time | AS00.00-Z-0005-01A | |
| 22.10.02 | Special instructions on connecting hydraulic lines and hoses have been added | AH32.50-P-0001-02A |
| Remove/install | |||
|---|---|---|---|
| Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid. | Depressurize the hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| Notes on active body control suspension | AH32.50-P-0001-01N | ||

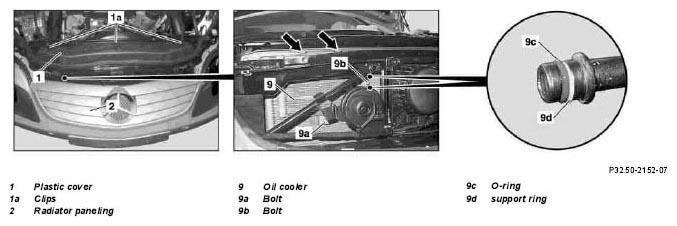

| 1 | Lever out clips (1a) and remove plastic cover (1) | ||
| 2 | Remove radiator paneling (2) | AR88.40-P-4001R | |
| 3 | Unscrew bolt (9b) and remove clamping pad | *BA32.50-P-1002-02B | |
| 4 | Pull the supply and return line out of the oil cooler (9) | ||
| Notes on fitting hydraulic lines and hoses | AH32.50-P-0001-02A | ||
| 5 | Unscrew bolt (9a), unhook oil cooler (9) from the lugs (arrows) and remove oil cooler (9) upwards | *BA32.50-P-1018-01A | |
| 6 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the running engine | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 7 | Fill and bleed ABC system | AR32.50-P-0021N |
ACTIVE BODY CONTROL, LINES
| Number | Designation | Model 230 | |
|---|---|---|---|
| BA32.50-P-1002-02B | Bolt, clamping pad oil lines to oil cooler | Nm | 8 |
ACTIVE BODY CONTROL SUSPENSION
| Number | Designation | Model 230 | |
|---|---|---|---|
| BA32.50-P-1018-01A | Bolt of oil cooler to bracket | Nm | 6 |
