Remove/install front axle valve unit - AR32.50-P-0001R (SL500, SL55 AMG 2003-2006, SL600 2004-2006, SL65 AMG 2005): Notes
MODEL 230.474 /475 /476 /479
MODIFICATION NOTES
| 22.10.02 | Safety note, included for the first time | AS00.00-Z-0005-01A | |
| 22.10.02 | Notes on fitting hydraulic lines and hoses, included for the first time | AH32.50-P-0001-02A | |
| 22.10.02 | Remove engine compartment paneling, included for the first time | AR61.20-P-1105R | |
| 5.3.03 | Value changed from 50 Nm to 45 Nm | Figure in Column 1001, 1002, 1003, 1012 Lines 1 and 2, 1013 on Model 230 has been revised | *BA32.50-P-1002-01A |
| 5.3.03 | Specification changed from 10 Nm to 9 Nm | Figure revised in row 1006, 1007, 1010, 1014 on model 230 | *BA32.50-P-1006-01A |
| Remove/Install | |||
|---|---|---|---|
| Risk of death cased by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury to skin or eyes caused by hydraulic fluid spraying out under pressure. Risk of poisoning caused by swallowing hydraulic fluid. | Depressurize the hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| Notes on active body control suspension | Models 215, 220, 230 | AH32.50-P-0001-01N | |

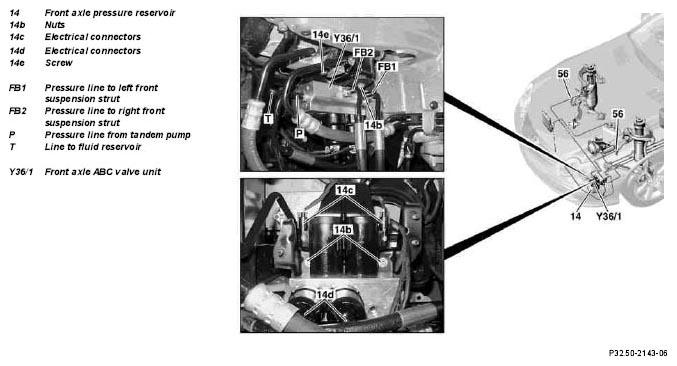

| 1 | Remove front panel sections from the engine encapsulation | AR61.20-P-1105R | |
| 2 | Relieve pressure in ABC system | AR32.50-P-0001-01N | |
| 3 | Remove front axle pressure reservoir (14) | AR32.50-P-0010R | |
| 4 | Pressure pipe to the front suspension strut on the left of (FB1) and pressure pipe to the front suspension strut on the right of (FB2) of the valve unit ABC front axle (Y36/1) dismount | *BA32.50-P-1002-01A | |
| Notes on fitting hydraulic lines and hoses | Models 215, 220, 230 | AH32.50-P-0001-02A | |
| 5 | Unscrew line to supply reservoir (T) and pressure line from tandem pump (P) from front suspension valve body (Y36/1) | *BA32.50-P-1002-01A | |
| 6 | Unscrew the bolt (14e) | ||
| 7 | Unscrew the nuts (14b), remove the ABC front suspension valve body (Y36/1) along with its mounting bracket and shield | *BA32.50-P-1010-01A | |
| 8 | Disconnect the electrical wiring plugs (14c, 14d) from the ABC front suspension valve body (Y36/1) | ||
| 9 | Disconnect the front suspension ABC valve body (Y36/1) from its mounting bracket | *BA32.50-P-1006-01A | |
| 10 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns when working in engine during starting procedure | Secure vehicle to prevent it from moving. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 11 | Fill and bleed ABC system | AR32.50-P-0021N |
ACTIVE BODY CONTROL SUSPENSION
| Number | Designation | Model 230 | |
|---|---|---|---|
| BA32.50-P-1002-01A | Union nut, line to front/rear axle valve unit | Nm | 45 |
| BA32.50-P-1006-01A | Bolt, valve unit to retaining plate | Nm | 9 |
| BA32.50-P-1010-01A | Nut, front axle valve unit to rubber buffer | Nm | 9 |
