Pressure supply valve unit, location - GF32.50-P-4210-01SL

Model 230

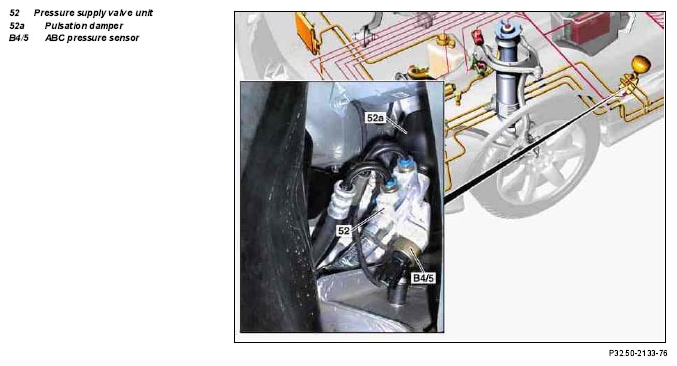

Fig 1: Identifying Pressure Supply Valve Unit Location

G05068172

Courtesy of MERCEDES-BENZ USA

In front left wheelhousing
