Pressure reservoir, location - GF32.50-P-4220-01SL

Model 230

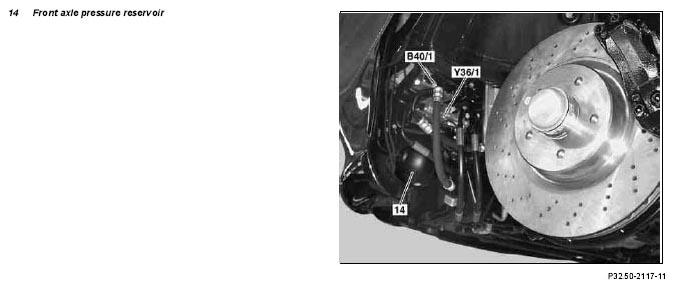

Fig 1: Identifying Front Axle Pressure Reservoir
G05068173Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Front Axle Pressure Reservoir And Return Flow Reservoir
G05068174Courtesy of MERCEDES-BENZ USA
