Press the radius rod out of the stub axle assembly - AR33.15-P-0160-01I

WHEEL LOCATION, HUB

Number Designation Model 211 except 211.08/09/ 28/29 Model 215 Model 220 except 220.08/18
BA33.20-P-1013-01A Self-locking nut, radius rod to steering knuckle 1st stage Nm 50 50 50
Stage 2 ∠° 60 60 60
WHEEL LOCATION, HUB

Number Designation Model 230
BA33.20-P-1013-01A Self-locking nut, radius rod to steering knuckle 1st stage Nm 50
Stage 2 ∠° 60
Fig 1: Identifying Thrust Piece (140 589 00 63 00)
G04840732Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Puller (220 589 00 33 00)
G04840733Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Press (163 589 03 43 00)
G04840734Courtesy of MERCEDES-BENZ USA
  1. Unscrew self-locking nut from radius rod coupling.
  2. SPECIAL TOOL Screw thrust washer (044a) onto the radius rod coupling.
  3. SPECIAL TOOL Apply the puller (035).
  4. SPECIAL TOOL Use the press (064) and press out the radius rod (18) from the stub axle (5) by turning the spindle (arrow)

    IMPORTANT Do not damage the rubber boot on the radius rod joint when pressing out.

    Shown on model 220

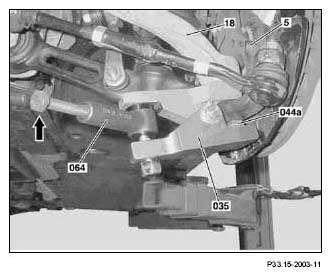

    Fig 4: Identifying Thrust Washer, Puller, Press, Radius Rod And Stub Axle - Shown On Model 220
    G04840735Courtesy of MERCEDES-BENZ USA
