Remove and install center air nozzle - AR83.10-P-4503R

MODEL 230.4

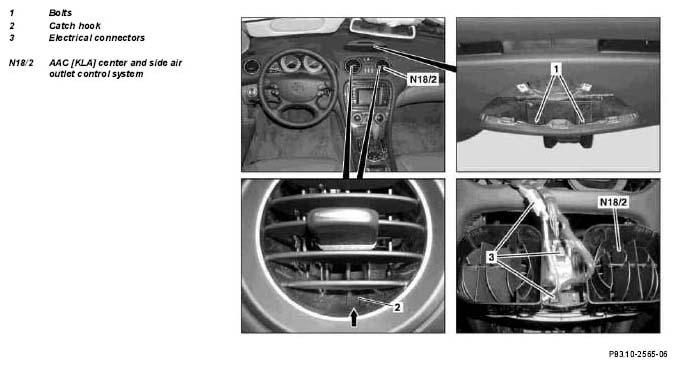

Fig 1: Identifying Center Air Nozzle Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove cover for loudspeaker		AR68.10-P-1050R
2	Remove bolts (1)
3	Release catch hooks (2) and pull AAC [KLA] center and side air outlet control system (N18/2) out of instrument panel	Do not pull on the flaps, otherwise the center and side air outlet control system will be damaged.
4	Disconnect electrical connectors (3) and remove AAC [KLA] center and side air outlet control system (N18/2)
5	Install in the reverse order
