Remove/install side paneling in rear - AR68.30-P-4780R
MODEL 230.4 except CODE (P99) "AMG Black Series" special model
| Remove/install | |||
|---|---|---|---|
| 1 | Completely open Vario roof | ||
| 2 | Remove draft stop | ||
| 3 | Move driver and front passenger seat toward front to end position | ||

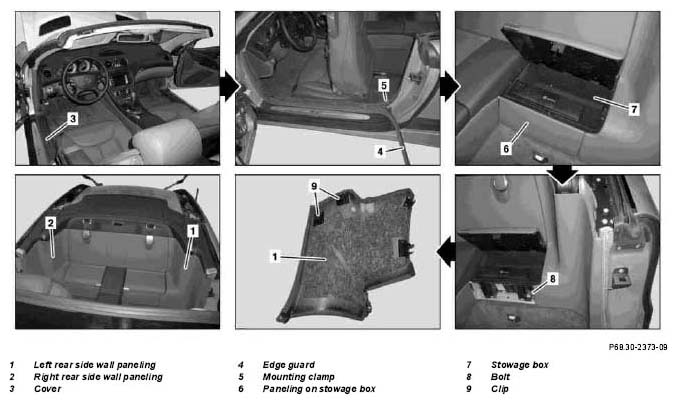

| 4 | Unclip cover (3) from door sill molding with mounting wedge and remove | Figure | |
| 5 | Remove edge guard (4) in area of B-pillar. | ||
| 6 | Pull mounting clamp (5) off B-pillar | ||
| 7 | Open stowage box (7) | ||
| 8 | Unclip paneling from stowage box (6) and remove | ||
| 9 | Unscrew bolt (8) | ||
| 10 | Unclip left rear side wall paneling (1) and right rear side wall paneling (1) from clips (9) with mounting wedge and remove. | Figure | |
| 11 | Install in the reverse order |
