Xenon headlamps not functioning - AF82.10-P-6004A

MODEL 230

OPERATION NO. OF OPERATION TEXTS OR STANDARD TEXTS AND FLAT RATES

Category	Op. no.	Operation text
P	824606	Remove/install left Xenon headlamp
P	824607	Remove/install right Xenon headlamp
P	824631	Replace control and ignition module (with headlamp removed)

Damage code	Cause	Remedy
82 279 73	The breakdown voltage required to activate the Xenon burner is not reached by the ignition module The headlamps are nonfunctional due to the Xenon burner not firing.	The ignition path has been modified in the ignition module. The manufacturing date of the ignition module is printed on the lamp unit's label (see figure). Headlamps manufactures after 07.07.2003 are not affected. For those vehicles with headlamps manufactured before 07.07.2003, proceed with the remedy as follows: ↓
		1 Remove headlamp unit.	AR82.10-P-4730R
		2 Unlock and remove housing cover on front of lamp unit at the tab.
		3 Twist the lamp unit's ignition module plug to the left and remove.
		4 Remove the screws from the ignition module cover.
		5 Remove/install, and replace ignition module
		6 Install in the reverse order.
		7 Test operation of lamp unit.

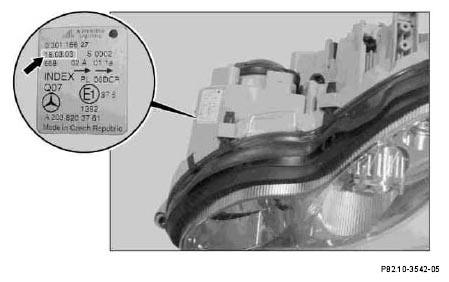

Label on lamp unit with manufacturing date (arrow)

Fig 1: Identifying Lamp Unit With Manufacturing Date Label

G05076365

PARTS ORDERING NOTES

Part no.	Designation	Quantity
A 230 820 21 26	Ignition module	1
