Remove/install rear wall paneling - AR68.30-P-4750RBS (Black Series)
MODEL 230.4 with CODE (P99) "AMG Black Series" special model
| Remove/install | |||
|---|---|---|---|
| 1 | Move driver and front passenger seat toward front to end position | ||
| 2 | Remove left and right rear side paneling | AR68.30-P-4780RBS | |

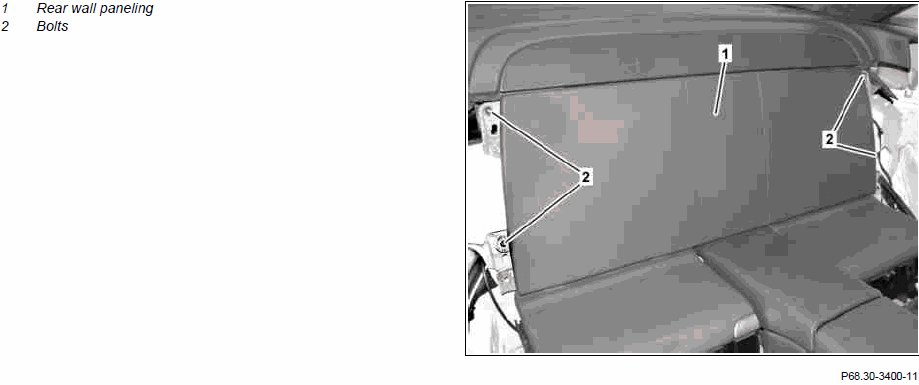

| 3 | Unscrew bolts (2) from rear wall paneling (1) | ||
| 4 | Pull rear wall paneling (1) toward front upward and remove from vehicle | ||
| 5 | Install in the reverse order |
