Seam sealing following repair, rear end damage - AR97.10-P-4000-02SXS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | White sealing compound, 310 ml, DBL 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
1 Seal spot welds, rivets and MAG seams in repaired area with seam sealant material.
Do not seal openings between MAG seams.
Leave openings open between MAG seams for coating with wax.
Insert plastic plugs and grommets with sealing compound.
Keep sealant out of threads on weld nuts and threaded bolts by masking or covering with cardboard sleeves. Also keep drain openings and contact surfaces for axle attachments, windows and detachable parts free of sealant.
It is necessary to seal accessible spot weld flanges on both sides.
If accessible from one side, only seal corresponding surface. Observe standard seals!
When sealing seams we differentiate between:
A smoothing/wiping
B spreading

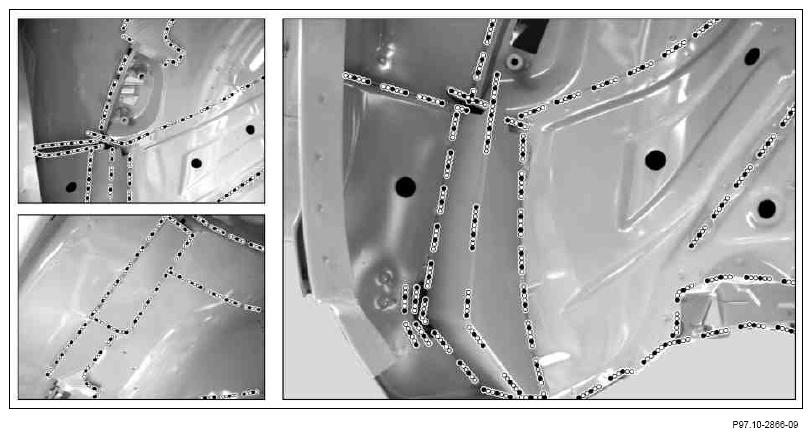

Area of entire left rear fender, shown on model 221 without code Z07
Area of rear fender, side paneling below bumper and left rear lamp cutout, shown on model 221 without code Z07

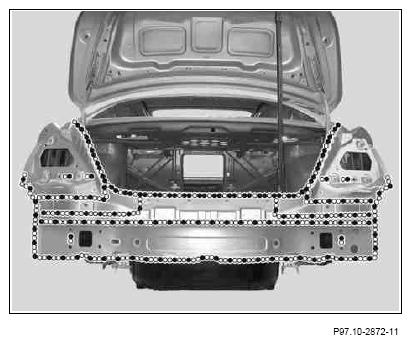

Area of complete rear end assembly, shown on model 221 without code Z07
Area of lower inner rear and left upper crossmember, shown on model 221 without code Z07

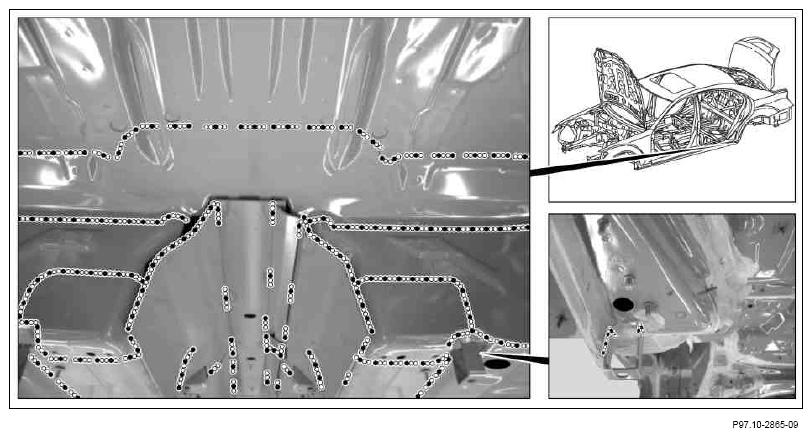

Area of entire underfloor, shown on model 221 without code Z07
Area of rear tunnel underfloor
Area of left rear wheel well

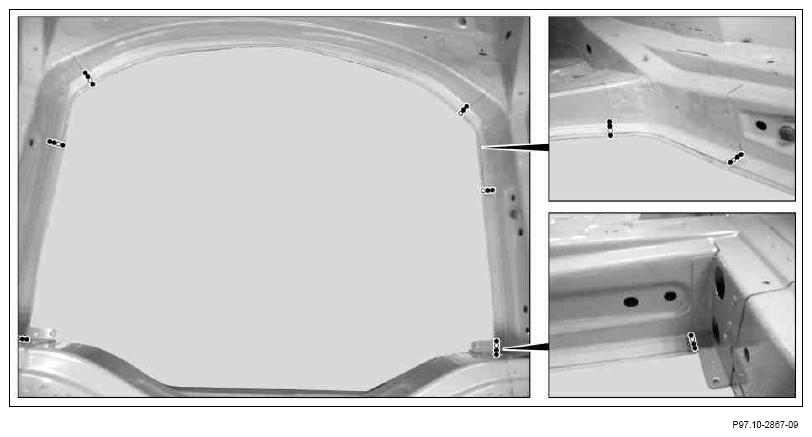

Area of spare wheel well
