Prepare window for installation - AR67.10-P-1000-03SXS
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1019-02A | Bonding agent Sika primer 206 G+P | Sika Deutschland GmbH Stuttgarter Strasse 139 72574 Bad Urach Germany Tel. +49 7125 940-761 Fax +49 7125 940-763 www.sika-industry.de |
| BR00.45-Z-1090-02A | Sika activator | A 005 989 58 71 |
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
The gluing areas on the windshield (1) must be absolutely free of dust and grease to prevent adhesion problems with the adhesive material when installing the window.
- Lift windshield (1) with cup suction tool and check for scratches and damages; replace if required.
Vacuum lifting unit http://gotis.aftersales.mercedes-benz.com
Position cup suction tool in upper third of windshield (1). The windshield (1) must be installed at an acute angle to the A-pillars, otherwise the installation operation is unnecessary difficult and the danger exists of the windshield (1) heating against the body flange and being damaged.
- Clean adhesive areas on windshield (1), allow to flash off and coat with activator.
Observe flash-off time for activator.
- Coat adhesive areas on windshield (1) with primer.

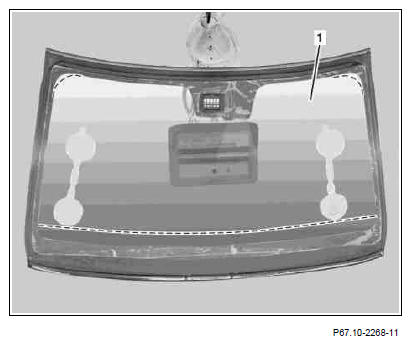

- Detach protective foil on inside of windshield (1) in area of upper and lower corners, pull inward along dotted lines (in lower area approx. 5 cm above screen printing) and hold in place with suitable adhesive tape.
- Hold electric lines for wiper park heater connector in place on outside of windshield (1) with suitable adhesive tape.
- Hold electric lines for heated windshield connector in place on outside of windshield (1) with suitable adhesive tape.
