Prepare glue cartridge - AR67.10-P-1000-07SXS
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1009-02B | Adhesive Sika 555 | Sika Deutschland GmbH Stuttgarter Strasse 139 72574 Bad Urach Germany Tel. +49 7125 940-761 Fax +49 7125 940-763 www.sika-industry.de |

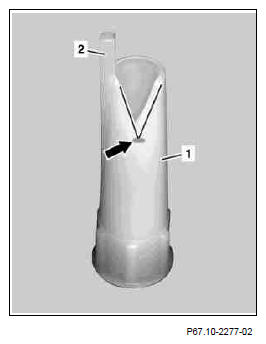

- Cut off pilot stud (2) on application nozzle (1).
- Cut application nozzle (1) down to marking (arrow).
- Screw application nozzle (1) onto cartridge and place cartridge in cartridge gun. Cartridge gun http://gotis.aftersales.mercedes-benz.com
To completely press out the material in the cartridge,
use intermediate piece.
