Adjust rear door - AR72.12-P-0650SXS

MODEL 221.1 with CODE (Z07) Top protection

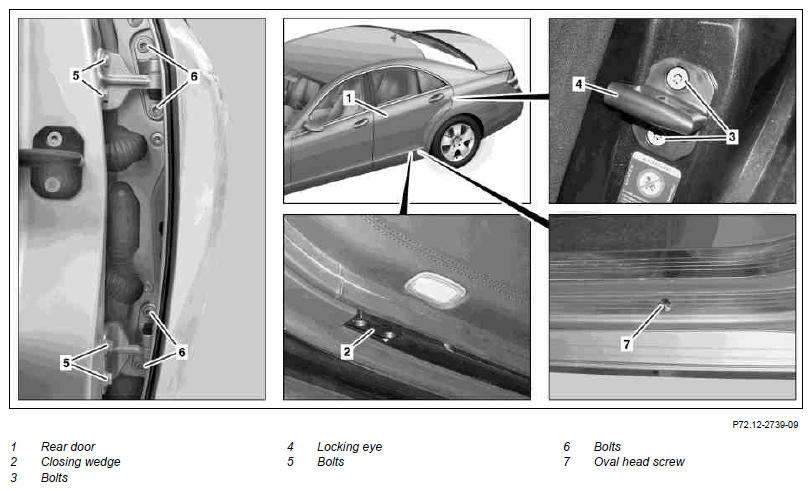

Fig 1: Identifying Rear Door Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

24.10.08	Value modified: Bolt, door hinge to rear door		*BA72.12-P-1017-01N
	Value modified: Bolt, door hinge to B-pillar		*BA72.12-P-1018-01N

	Checking
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
1	Check gaps on rear door (1) all the way around.		AR60.00-P-0700-01SX *BE60.00-P-1002-01R
1	Check gaps on rear door (1) all the way around.		Figure
	Adjust
2	Remove striker wedge (2) at bottom of rear door (1)
3	Remove locking eye (4)	Mark installation position of locking eye (4), to facilitate reinstallation.
4	Support rear door (1) with floor jack and suitable block of wood, position below mounting location of striker wedge (2)	Do not support rear door (1) on outer paneling, otherwise, the rear door (1) can be damaged by its high dead weight. See GOTIS for NIKE passenger car floor jack http://gotis.aftersales.mercedes-benz.com
5	Loosen bolts (5) on B-pillar and adjust corresponding gap dimensions by moving rear door (1).	Adjust gap dimensions at rear door (1) by lifting or lowering floor jack.	AR60.00-P-0700-01SX *BE60.00-P-1002-01R
5			Figure
6	Tighten bolts (5), lower and remove floor jack	See GOTIS for NIKE passenger car floor jack http://gotis.aftersales.mercedes-benz.com	*BA72.12-P-1018-01N
7	Loosen bolts (6) on rear door and adjust transition of front door to rear door (1) by moving rear door (1).	The contour of the front door must be flush with the contour of the rear door (1) or project by a maximum of 1 mm.
8	Tighten bolts (6)		*BA72.12-P-1017-01N
9	Insert locking eye (4) and screw in bolts (3) up to stop	It still should be possible to adjust the locking eye (4).
10	Adjust transition between rear door (1), rear fender and roof paneling by moving locking eye (4).	The contour of the rear door (1) must be flush with the contours of the rear fender and roof paneling or project by a maximum of 1 mm
11	Tighten screws (3)		*BA72.12-P-1020-01N
12	Repair paint damage to screw heads with suitable touch-up paint pen
13	Install striker wedge (2)	Only tighten bolts on striker wedge (2) hand-tight.
14	Coat oval head screw (7) with grease	Multipurpose grease	*BR00.45-Z-1034-06A
15	Carefully close and open rear door (1) and determine on basis of grease impression on oval head screw (7), whether height of striker wedge (2) requires correction by inserting shims. If the rear door (1) is hard to close or cannot be closed at all, correct the height of the striker wedge (2) by removing shims	The rear door (1) is supported on the oval head screws (7) by the striker wedge (2) so that its entire dead weight is not on the locking eye (4). The rear door (1) should be easy to close.
16	Tighten bolts on striker wedge (2)		*BA72.12-P-1025-01N

CHECK VALUES FOR GAPS

Number	Designation				Model 221
BE60.00-P-1002-01R	Gap dimension	Front door to A-pillar	Dim. "D"	mm	4.5 (±0.5)
		Front door to fender	Dim. "E"	mm	4 (±0.5)
		Front door to rear door	Dim. "F"	mm	4.5 (±0.5)
		Trim strip at front door to roof frame	Dim. "G"	mm	4.5 (±0.5)
		Trim strip at rear door to roof frame	Dim. "H"	mm	4.5 (±0.5)
		Rear door to side section, bottom	Dim. "I"	mm	4.5 (±0.5)
		Front door cover to rear door cover	Dim. "S"	mm	4.5 (±0.5)
		Front door cover to rear door cover	See picture		AR60.00-P-0700-01SX

REAR DOOR

Number	Designation		Model 221 with code Z07/ Z07+Z19
BA72.12-P-1017-01N	Bolt, door hinge to rear door	Nm	40
BA72.12-P-1018-01N	Bolt, door hinge to B-pillar	Nm	40
BA72.12-P-1020-01N	Bolt, locking eye to C-pillar	Nm	28
BA72.12-P-1025-01N	Bolt, stop wedge on rear door	Nm	5

Fig 2: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1034-06A	MB multipurpose grease	A 001 989 34 51 10
