Remove/install door sill molding - AR68.30-P-4100SXS

MODEL 221.1 with CODE (Z07) Top protection

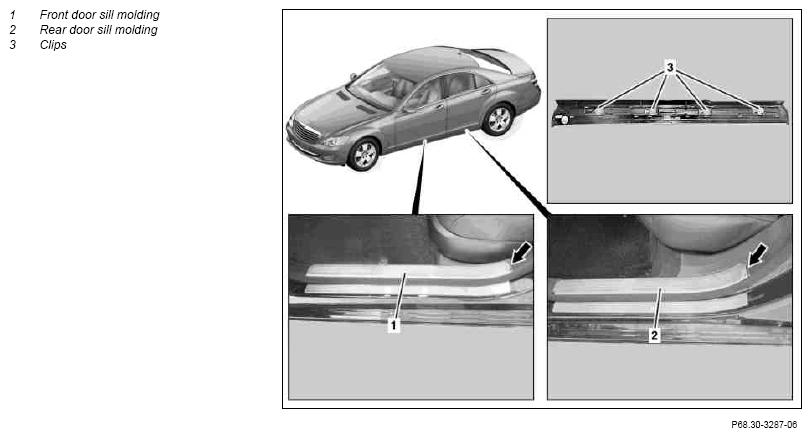

Fig 1: Identifying Door Sill Moldings & Clips

Courtesy of MERCEDES-BENZ USA

	Removal
1	Slide a door trim release lever from the rear (arrows) under the front door sill molding (1) or rear door sill molding (2) up to the first clip (3) to be released, turn release lever 90° to the outside and unclip clip (3) by pressing release lever downward	Make sure to insert door trim release lever from the rear (arrows) under the front door sill molding (1) or rear door sill molding (2), otherwise, the chrome strip can be damaged.
2	Insert door trim release lever up to other clips (3) for front door sill molding (1) or rear door sill molding (2) and unclip clips (3), by pressing release lever down
3	Pull front door sill molding (1) or rear door sill molding (2) upward from rear (arrows) and lift out of retaining clip
4	Check clips (3), replace if necessary
	Installation
5	First insert front door sill molding (1) or rear door sill molding (2) into retaining clip and then clip in toward rear
