Remove/install door sill molding - AR68.30-P-4100SX

MODEL 221.0

MODEL 221.1 except CODE (Z07) Top protection

Shown on model 221.0

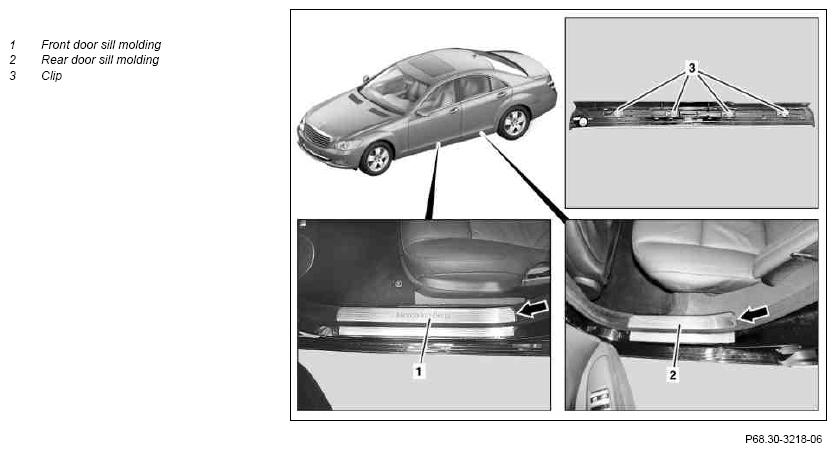

Fig 1: Identifying Door Sill Moldings & Clips

G07587987

Courtesy of MERCEDES-BENZ USA

	Removal
1	Move door paneling release lever from rear (arrow) below front door sill molding (1) or rear door sill molding (2) to the first two clips (3) to be loosened, turn 90° outside and unclip clip (3) by pressing door paneling release lever downward.	Do not install door paneling release lever from side below front door sill molding (1) or rear door sill molding (2), otherwise the chrome-plated strip can be damaged.
2	Move door paneling release lever on all other clips (3) of front door sill molding (1) or rear door sill molding (2) and unclip clips (3) by pressing door paneling release lever down.
3	Pivot front door sill molding (1) or rear door sill molding (2) upward from rear (arrow) and lift out of retaining clips.
	Install
4	First insert front door sill molding (1) or rear door sill molding (2) into retaining clips and then clip in toward rear.	Replace clips (3).
