Prepare headliner for installing Parktronic system warning display in rear - AR68.30-P-4300-04SX

WORKSHOP EQUIPMENT

WE58.40-Z-1004-03A Body saw (electric/pneumatic)

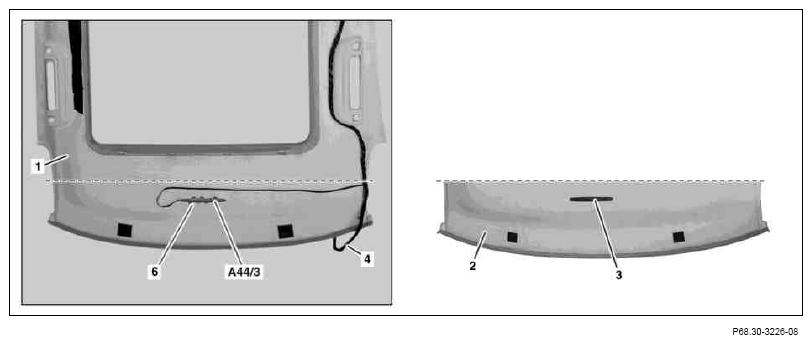

Fig 1: Identifying Installation Frame, Headliner, Wiring Harness And Warning Indicator
G07587989Courtesy of MERCEDES-BENZ USA

Shown on model 221

  1. Remove installation frame (6) from old headliner (1).
  2. Detach wiring harness (4) from rear area of old headliner (1) and lay down to side.
  3. Saw through old headliner (1) approx. 5 cm in front of cutout for rear PTS warning indicator (A44/3).
  4. Shim rear area of new headliner (1) with suitable spacers, e.g. foam material or Styrofoam blocks.

    NOTES Do not use hard or sharp-edged objects to prevent damaging the new headliner cover (1).

    The shims prevent the new headliner (1) from being bent or damaged during the following work steps.

  5. Place cutting template (2) onto new headliner (1) and align.
  6. Mark cutout for PTS warning indicator (3) onto new headliner (1).
  7. Remove cutting template (2) from new headliner (1).
  8. Saw cutout for PTS warning indicator (3) out of new headliner (1).

    NOTES Use metal saw blade, otherwise headliner (1) can be damaged.

    Saw out within the recorded cutting line, otherwise the cutout for the PTS warning indicator (3) is too large.

    Shown on model 221

  9. Insert new installation frame (6) from bottom into new headliner

    IMPORTANT The retaining spring (arrow A) must be located on the right side (toward front of vehicle).

  10. Bend over left and right side retaining tab (7) at intended bending point (arrows B) using suitable pliers.

    NOTES Carefully bend over retaining tabs (7), otherwise the installation frame (6) can distort very easily.

    Fig 2: Locating Retaining Tab Bending Point
    G07587990Courtesy of MERCEDES-BENZ USA

    Shown on model 221

  11. Bend retaining tabs (8) of installation frame (6) with plastic mallet.

    NOTES Support rear of installation frame (6) with suitable clean object, otherwise installation frame (6) can distort.

    Fig 3: Identifying Retaining Tabs And Installation Frame
