Notes on the application of sealing compound to the cylinder head cover - AH01.30-P-1000-08SX

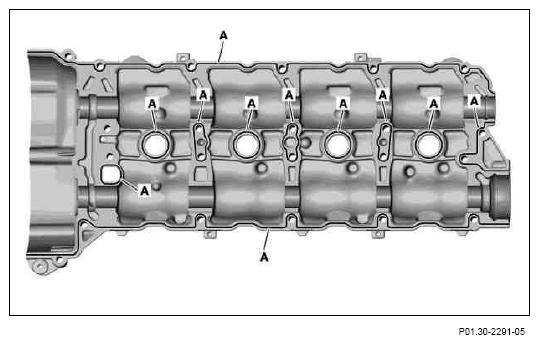

Sealing compound beads on the right cylinder head cover
The lines (A) identify the sealing compound beads.
The sealing surface must be cleaned.
The sealing compound must only be applied to the specified surface in the form of a bead and a height and width of 1.0 mm (±0.2 mm).
The sealing compound must be applied within 10 minutes.
The sealing compound bead must not be spread. Only the approved sealant may be used.

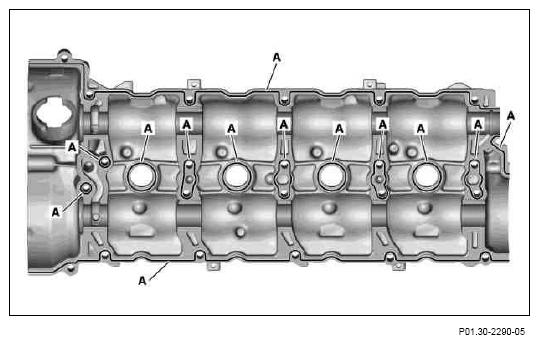

Sealing compound beads on the left cylinder head cover
