Notes on sealant path for timing case cover - AH01.40-P-1000-01VA

Engine 272, 273

IMPORTANT The lines (1) identify the application of the sealant.

IMPORTANT The sealing surface must be cleaned. Sealant should be applied only to the specified surface, in the form of a bead of height and width 1.5 mm ±0.5 mm. The sealing compound must be applied within 10 min. The sealing compound bead must not be spread. Use only the sealant indicated in Repair Materials.

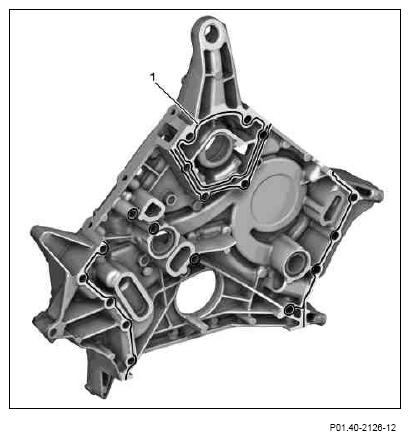

Fig 1: Identifying Sealant Application Area On Timing Case Cover
G07589998Courtesy of MERCEDES-BENZ USA
