Information on application of sealant to crankcase bottom section - AH01.40-P-1000-03AMG
Engine 156
Sealing agent flow

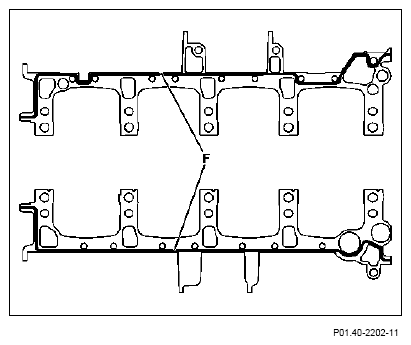

The line drawn in (F) identifies the sealant application.
The sealant must be applied only to specified surfaces with a bead of 2.0 mm ±0.5 mm. The sealant must be applied within 10 min. The silicone bead must not be spread. Only use released sealant listed in the Repair Products.
