Adjusting headlamps when driving abroad - AH82.10-P-0001-01A
Model 164, 169, 171, 172, 203, 204, 207, 209, 211, 212, 215, 216, 218, 219, 220, 221, 230, 245, 251
Headlamp with projection system (with halogen, xenon or full LED headlamps)
| 18.4.11 | Note on adjusting headlamps when driving abroad in model 218 | ||
| 17.6.11 | "Adjust headlamps for model 204.0/2 as of YoM 11/1 and model 204.3" added |
The headlamp adjustment is generally mechanical.
Pressing a lever changes the position of a movable blind. The movable blind then covers up the part of the light beam which - through appropriate projection - is responsible for illuminating the edge of the roadway.
The lever for this purpose is located next to the bulb and can be accessed after removing the corresponding cover on the headlamp housing.
The lever's location, version and actuation are dependent on the manufacturer of the headlamp and the model.
Observe the safety regulations pertaining to handling high-voltage parts on xenon and bi-xenon headlamps.
The setting is to be checked with a headlamp aimer following manual adjustment.
In model 211 with Intelligent Light System, the adjustment of the headlamps occurs electronically using Star Diagnosis.
On model 216 , the headlamps are adjusted electronically using Star Diagnosis.
On model 172 and 204.9 with halogen headlamps, the headlamps are adjusted using the headlamp range controller.
The headlamp setting must be checked before adjustment using a headlamp aimer.
In model 204.0/2/3 with Intelligent Light System, the headlamp adjustment occurs in the onboard computer via the instrument cluster.
In model 204.0/2 as of YoM 11/1 with halogen headlamps, no headlamp adjustment is necessary.
In model 204.3 with halogen headlamps, no headlamp adjustment is necessary.
In model 207 and model 212 up to 30.11.09 (YoM 09/2) with bi-xenon headlamps, the adjustment of the headlamps occurs electronically using Star Diagnosis.
In model 172, 207 and model 212 as of 1.12.09 (YoM 09/2) with bi-xenon headlamps, the adjustment of the headlamps occurs in the onboard computer via the instrument cluster.
In model 218 with full LED headlamps, the headlamp adjustment occurs in the onboard computer via the instrument cluster.

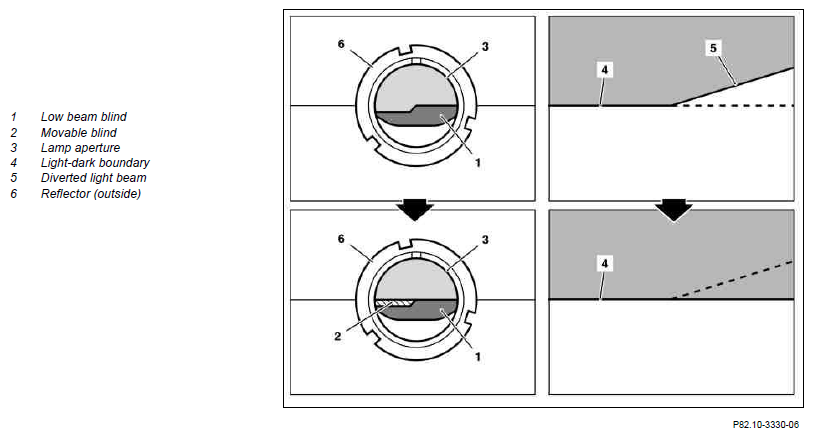

Changing the light beam after adjusting the movable blind (2) (view from behind through the lamp aperture (3).
The overview shows the situation for right-hand traffic.

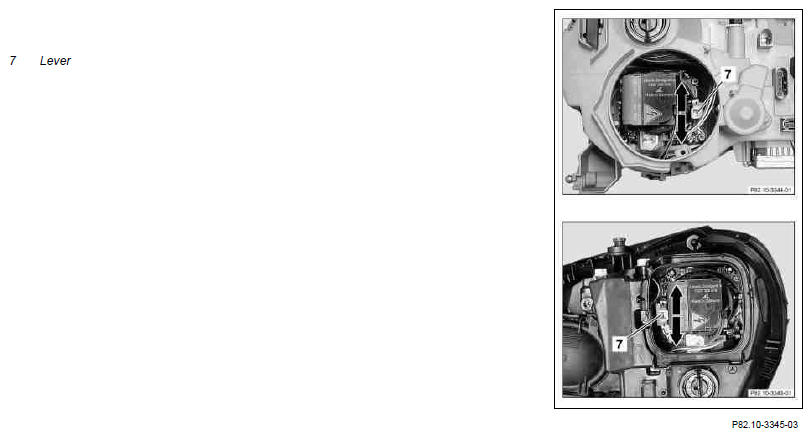

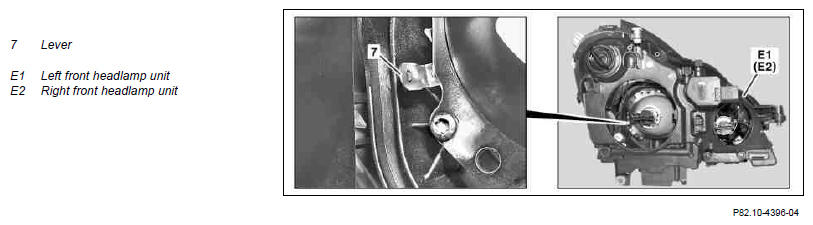

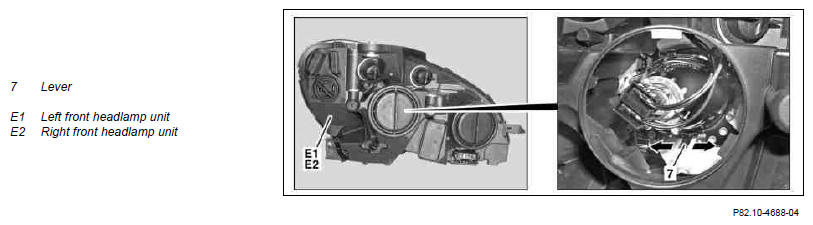

Model 164 with halogen headlamps

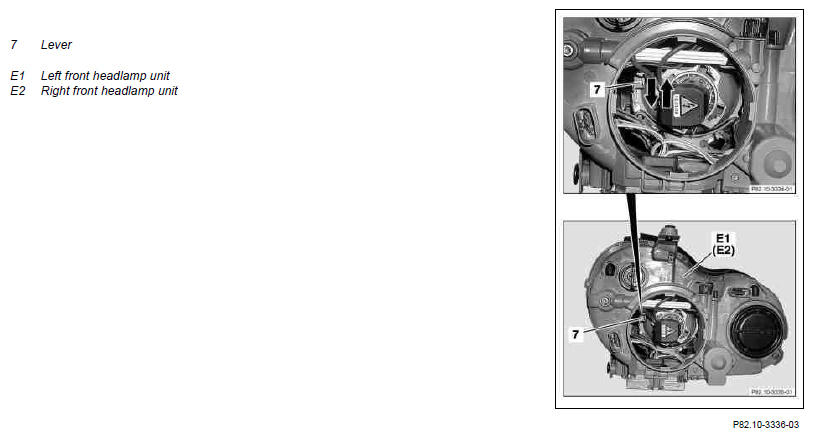

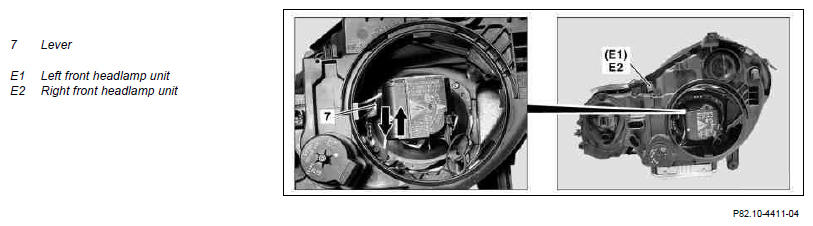

Model 164 with xenon headlamps

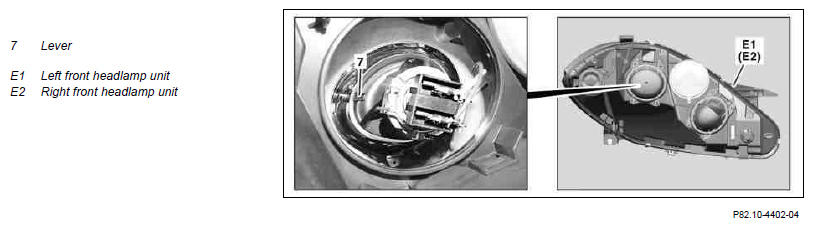

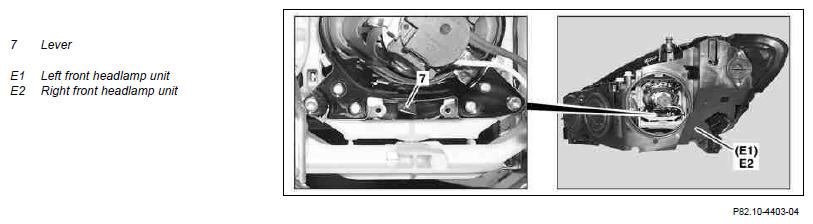

Model 169 with halogen headlamps

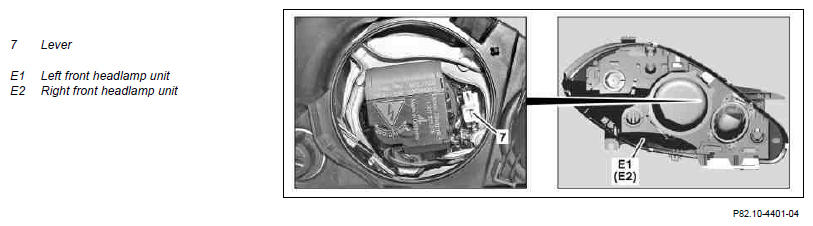

Model 169 with xenon headlamps

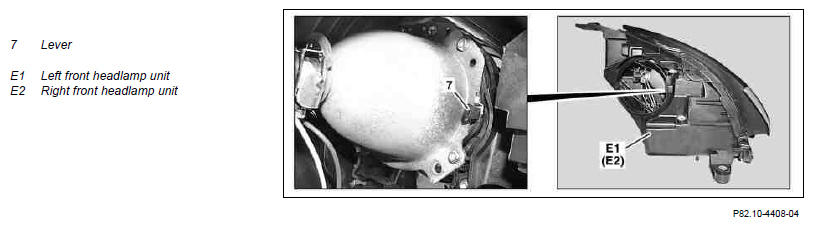

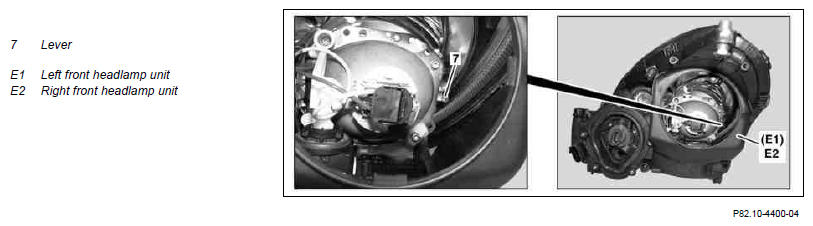

Model 171 with halogen headlamps

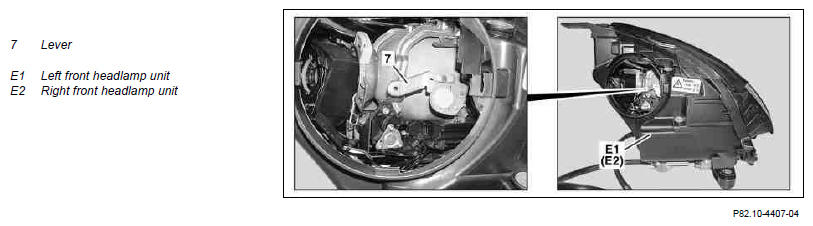

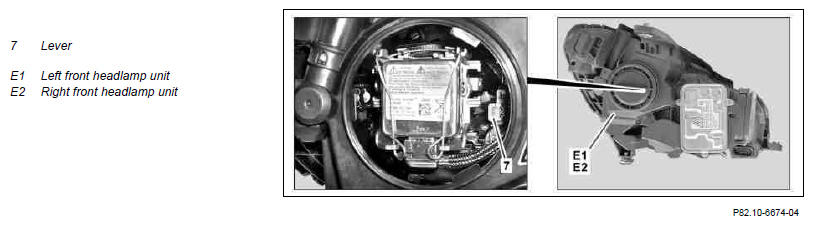

Model 171 with xenon headlamps
Model 172 with halogen headlamps
The headlamps are adjusted using the headlamp range controllers. Procedure:
- With normal load, turn the headlamp range controller to position 1.
Turn headlamp range control to position 0 after returning to the country in which the car is registered.
- With high load, turn the headlamp range controller to position 2.
Model 172 with Intelligent Light System
The headlamp adjustment occurs in the onboard computer via the instrument cluster.

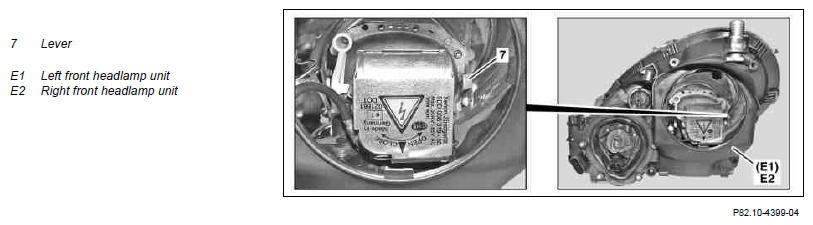

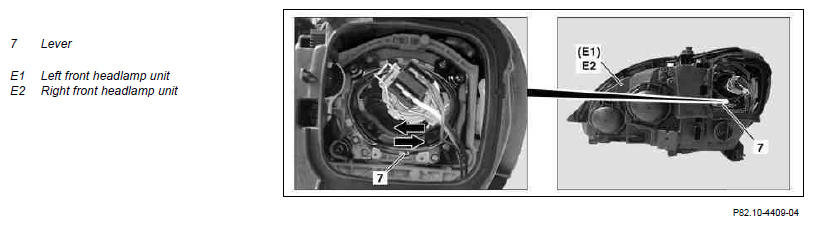

Model 203.0/2 with xenon headlamps,

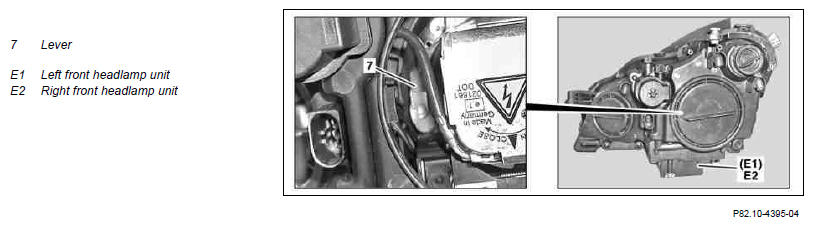

Model 203.7## #A with xenon headlamps,
Model 203.7## #E up to 035817 with xenon headlamps
Model 204.0/2 up to YoM 11/1 with halogen headlamps, model 203.7## #E with code (809) Model year 2009 with halogen headlamps

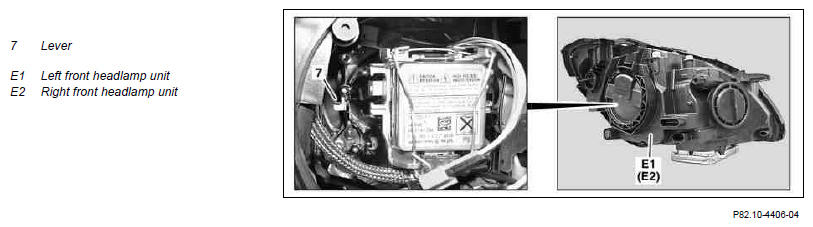

Model 204.0/2 up to YoM 11/1 with bi-xenon headlamps, model 204.9 with bi-xenon headlamps or with Intelligent Light System
Model 203.7## #E with code (809) Model year 2009 with bi-xenon headlamps
Model 204.0/2/3 with Intelligent Light System
The headlamp adjustment occurs in the onboard computer via the instrument cluster.
Model 204.9 with halogen headlamps
The headlamps are adjusted using the headlamp range controllers. Procedure:
- With normal load, turn the headlamp range controller to position 1.
- With high load, turn the headlamp range controller to position 2.

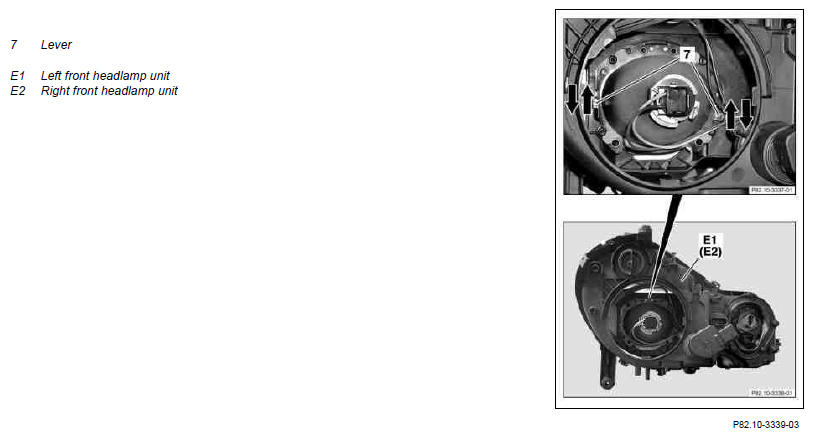

Model 209 with bi-xenon headlamps
Model 209 with bi-xenon headlamps with integrated curve illumination

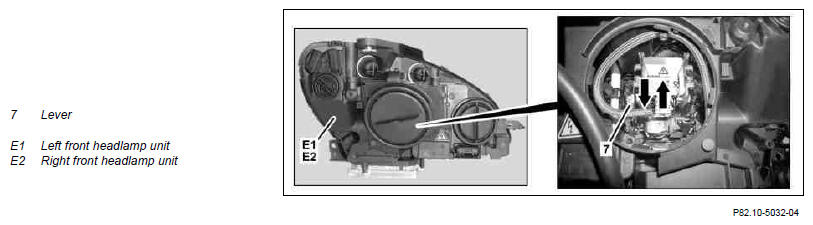

Model 211 with halogen headlamps

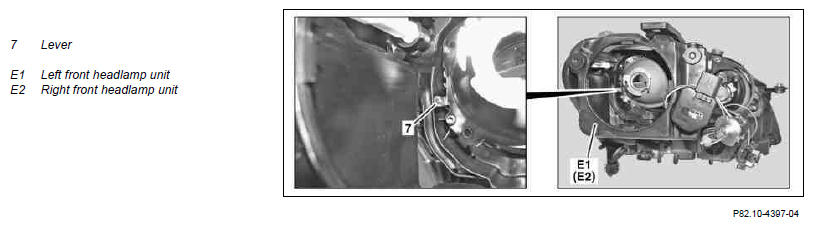

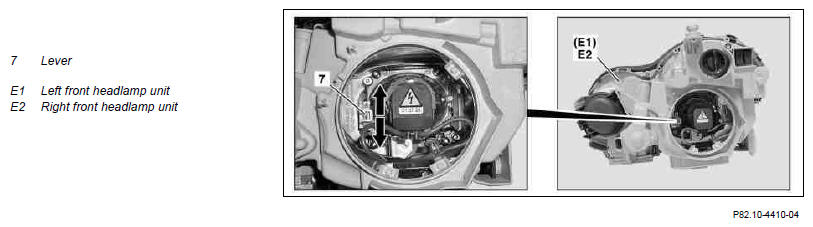

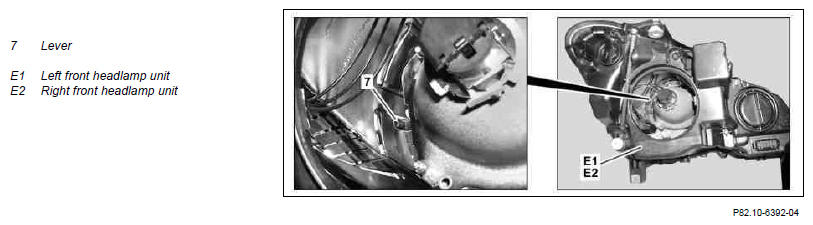

Only one of the two levers (7) needs to be adjusted. The other lever (7) moves automatically in sync.

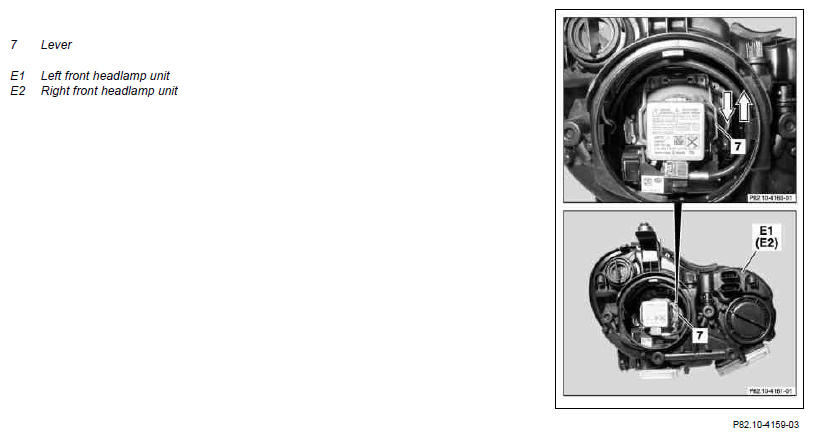

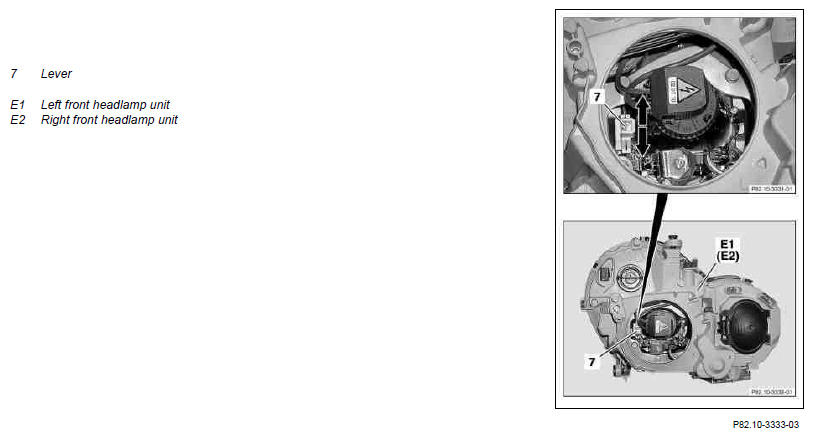

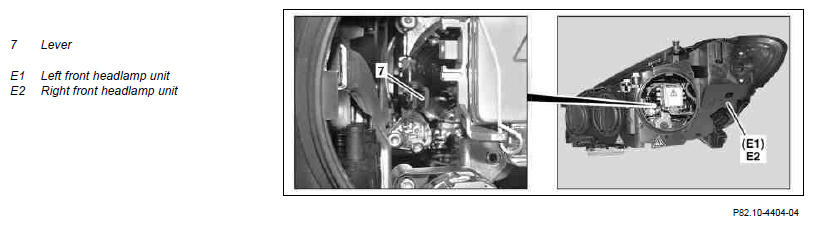

Model 211 with bi-xenon headlamps
Model 211 with Intelligent Light System
The headlamps are not adjusted manually. The headlamps are adjusted using STAR DIAGNOSIS.
Procedure:
- Menu item "Control units"
- Menu item "Body"
- Menu item "Left xenon headlamp control unit"
- Menu item "Control unit adaptations"

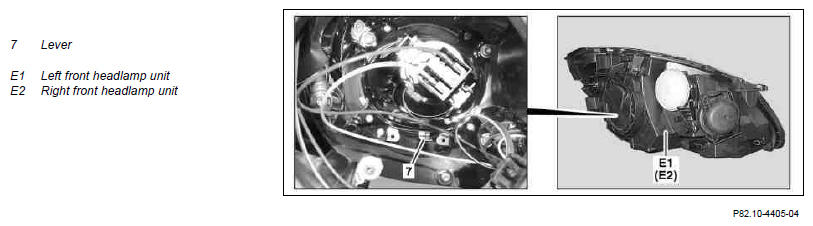

Model 207, 212 with halogen headlamps
Model 207 and model 212 with bi-xenon headlamps up to 30.11.09 (YoM 09/2)
The headlamp conversion is done with the aid of the STAR DIAGNOSIS.
Procedure:
- Menu item "Control units"
- Menu item "Body"
- Menu item "Left xenon headlamp control unit"
- Menu item "Control unit adaptations"
Model 207 and model 212 with bi-xenon headlamps as of 1.12.09 (YoM 09/2)
On vehicles with Intelligent Light System, the headlamps are adjusted in the onboard computer via the instrument cluster.
Model 216
The headlamps are not adjusted manually. The headlamps are adjusted using STAR DIAGNOSIS.
Procedure:
- Menu item "Control units"
- Menu item "Body"
- Menu item "Left xenon headlamp control unit"
- Menu item "Control unit adaptations"
Model 218 with full LED headlamps
The headlamp adjustment occurs in the onboard computer via the instrument cluster.
Model 218 with bi-xenon headlamps
Model 219 with halogen headlamps
Model 219 with xenon headlamps
Model 215 with xenon headlamp (top picture)
Model 220 with xenon headlamp (bottom picture)
Model 220 with halogen headlamps
Model 221 with halogen headlamps
Model 221 with xenon headlamps
Model 230
Shown on vehicle up to 28.1.08
Model 245 with halogen headlamps
Model 245 with xenon headlamps
Model 251 with halogen headlamps
Model 251 with xenon headlamps
