Remove/install wheels, rotate if necessary - AP40.10-P-4050CW

MODEL 204, 207

Left illustration

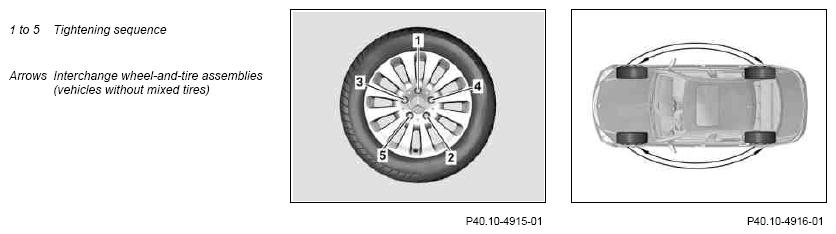

Fig 1: Identifying Wheel Bolts Tightening Sequence

Courtesy of MERCEDES-BENZ USA

Right figure

MODIFICATION NOTES

23.3.11

Detach wheel caps, added Information on bolted wheel connection added

Operation step 2 Step 5

	Removing
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Hoist vehicle with lifting platform until wheels are free
2	Pull off wheel covers	Vehicles with wheel covers
3	Unscrew wheel bolts and remove wheel-and-tire assemblies	Model 204.9: Use wheel lift. Wheel lift / wheel lift truck	Figure
	Checking
4	Check tires for damage and condition, measure tread depth and note down measurements on maintenance sheet		AP40.10-P-4051CW
	Information on tires / rims		AH40.10-P-9411-01A
5	Clean and check wheel bolt connection components, then protect against corrosion	Before mounting a wheel-and-tire assembly all  the operation steps listed in the linked description must be conducted carefully. Otherwise the wheel-and-tire assembly may work its way loose from the vehicle and cause damage to people, property or the environment!	AP40.10-P-4050-01A
		Cleaner from package	*BR00.45-Z-1028-04A
		Long-life grease	*BR00.45-Z-1001-06A
	Install
6	Change round wheel-and-tire assemblies on front and rear axles	As required, and only on vehicles without mixed tires Maintain running direction of wheel-and-tire assemblies. Otherwise handling characteristics and handling comfort may be impaired and tire wear increased.
7	Mount wheel-and-tire assembly and tighten wheel bolts	Model 204.9: Use wheel lift. Observe the tightening sequence (1 to 5) and tightening torque. Wheel bolt	*BA40.10-P-1001-01M
		Spare tire wheel bolt	*BA40.10-P-1003-01M
8	Lower vehicle
9	Correct tire pressure for all wheel-and-tire assemblies	In the event of tire pressure loss, establish cause and replace valve, tire or rim: ↓ Replace tire: Model 204	AR40.10-P-1030CW
		Model 207 Tire inflation devices - mobile - with / without reservoir	AR40.10-P-1030EW
10	Fit wheel covers	Vehicles with wheel covers
11.1	Activate the tire pressure monitoring system	Only for wheel rotation, tire replacement or change in tire pressure and only vehicles with code (470) Tire pressure monitor (base) or code (475) Tire pressure monitor (Schrader): Restart tire pressure monitor: Model 204	AR54.30-P-1000-02RAD
		Model 207	AR54.30-P-1000-02RAU
11.2	Activate tire pressure loss warner	Only for wheel rotation, tire replacement or change in tire pressure and only vehicles without code (470) Tire pressure monitor (basic) and without code (475) Tire pressure monitor (Schrader): ↓ Restart tire pressure loss warning: Model 204	AR54.30-P-1000-02RAC
		Model 207	AR54.30-P-1000-02RAE

WHEELS

Number	Designation		Model 204 except 204.9	Model 204.9	Model 207
BA40.10-P-1001-01M	Wheel bolt	Nm	130	150	130
BA40.10-P-1003-01M	Spare tire wheel bolt	Nm	130	150	130

Fig 2: Identifying Socket Wrench (199 589 01 09 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1028-04A	Cleaner from package
BR00.45-Z-1001-06A	Long-life grease	A 000 989 63 51 11
