Check rear axle differential oil level, correct if necessary - AR35.31-P-0520-03SX
DIFFERENTIAL HOUSING
| Number | Designation | Model 216 | Model 221 | |
|---|---|---|---|---|
| BA35.31-P-1002-02G | Oil filler screw, differential | Nm | 50 | 50 |
DIFFERENTIAL
| Number | Designation | Model 216 | Model 221 | ||
|---|---|---|---|---|---|
| BF35.31-P-1001-01S | Filling capacity | Rear axle differential 200FE, 200 mm dia. | Liters | 1.1 | 1.1 |
| Specifications for service products | Sheet | BB00.40-P-0235-07A | BB00.40-P-0235-07A | ||
| Rear axle differential 215FE, 215 mm dia. | Liters | 1.2 | 1.2 | ||
| Specifications for service products | Sheet | BB00.40-P-0235-07A | BB00.40-P-0235-07A | ||
| Rear axle differential 240FE, 240 mm dia. | Liters | 1.6 | 1.6 | ||
| Specifications for service products | Sheet | BB00.40-P-0235-07A | BB00.40-P-0235-07A | ||
| Rear axle differential 240V, 240 mm dia. | Liters | - | 1.9 | ||
| Specifications for service products | Sheet | - | BB00.40-P-0235-07A | ||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1061-01A | Sealant, Omnifit 100H (50 g) | A 002 989 23 71 |
| BR00.45-Z-1046-04A | Loctite 7063 cleaning spray (150 ml) | A 001 986 71 71 10 |
Only carry out the oil level check at interior temperature and not on a rear axle center assembly which is at operating temperature. Otherwise, when the rear axle differential is at operating temperature, required oil could escape.

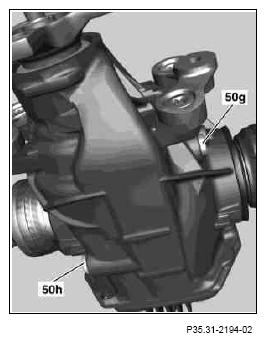

- Clean area around oil filler screw (50 g).
- Remove oil filler screw (50 g)
Replace oil filler screw (50g).
- If necessary, collect any oil which runs out and allow to run out until the oil still only drips out of threaded hole.
- Check oil level.
- Clean new oil filler screw and threaded hole in rear axle differential using cleaning spray and a suitable rag.
- Coat roughly one droplet of sealant on the second or third lower thread of the new oil filler screw.
- Screw oil filler screw into rear axle center assembly immediately and tighten to specified tightening torque.
