Remove/install taillamp - AR82.10-P-4905SX

MODEL 216.3, 221.0 /1

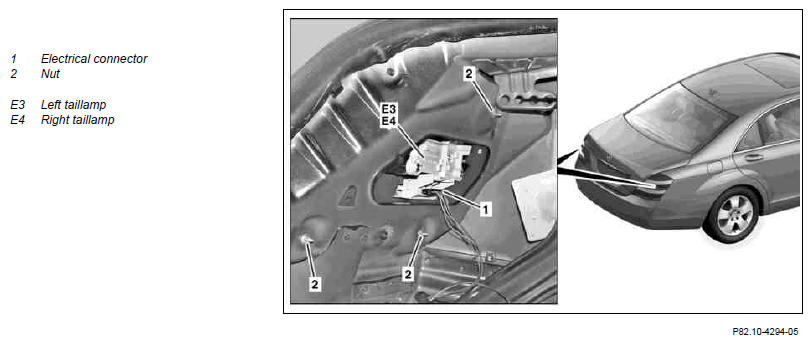

Shown on model 221 up to 31.5.09 on left taillamp

Fig 1: Identifying Tail Lamps, Electrical Connector & Nut

G07599988

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Detach left or right paneling on side of luggage compartment and swivel inward	Vehicles without code (Z07) Top protection	AR68.30-P-4600SX
		Vehicles with code (Z07) Top protection	AR68.30-P-4600SXS
2	Unscrew nuts (2), unplug electrical connector (1) and remove left taillamp (E3) or right taillamp (E4)	In model 216 the left taillamp (E3) and the right taillamp (E4) are screwed on with four nuts (2).
3	Detach detachable parts from left taillamp (E3) or from right taillamp (E4)	Only when replacing on model 221.0 /1 up to 31.5.09 except CODE (800) Model year 2010 Installation: Attach new trim panels to left taillamp (E3) or right taillamp (E4). Reuse screws of LED board.	AR88.85-P-9814SX
4	Install in the reverse order
