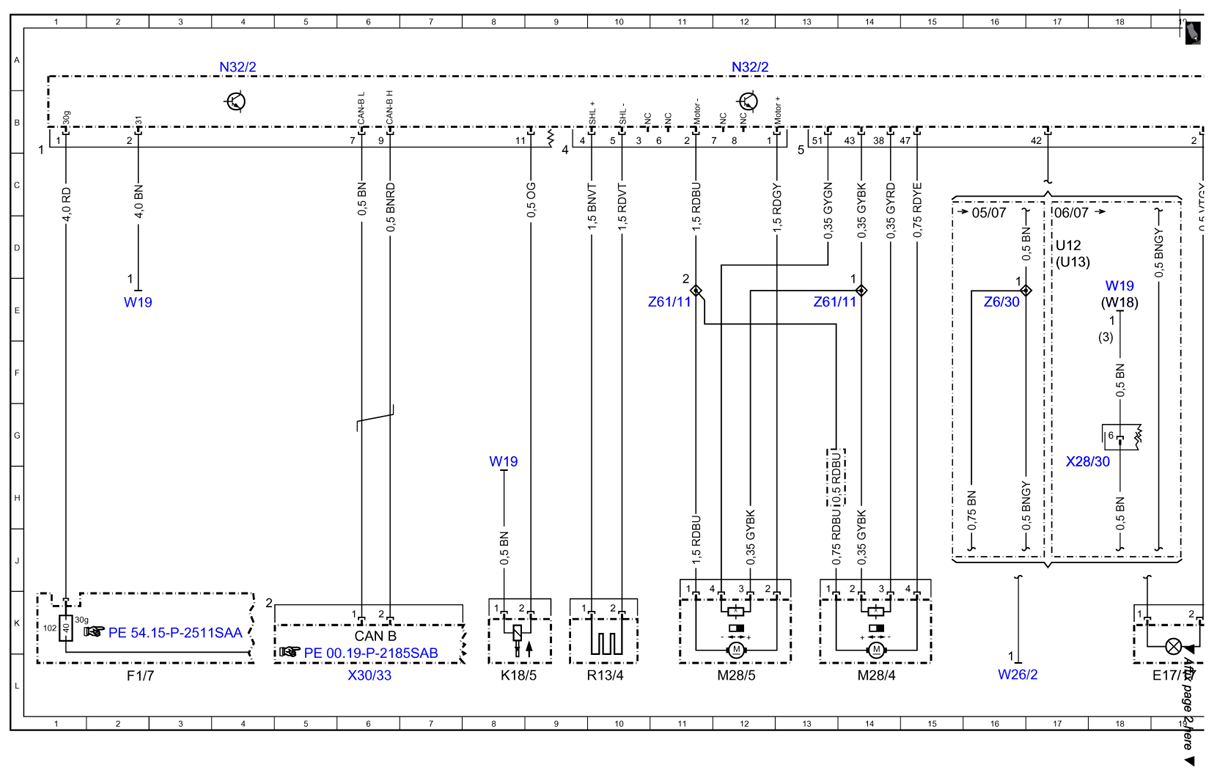

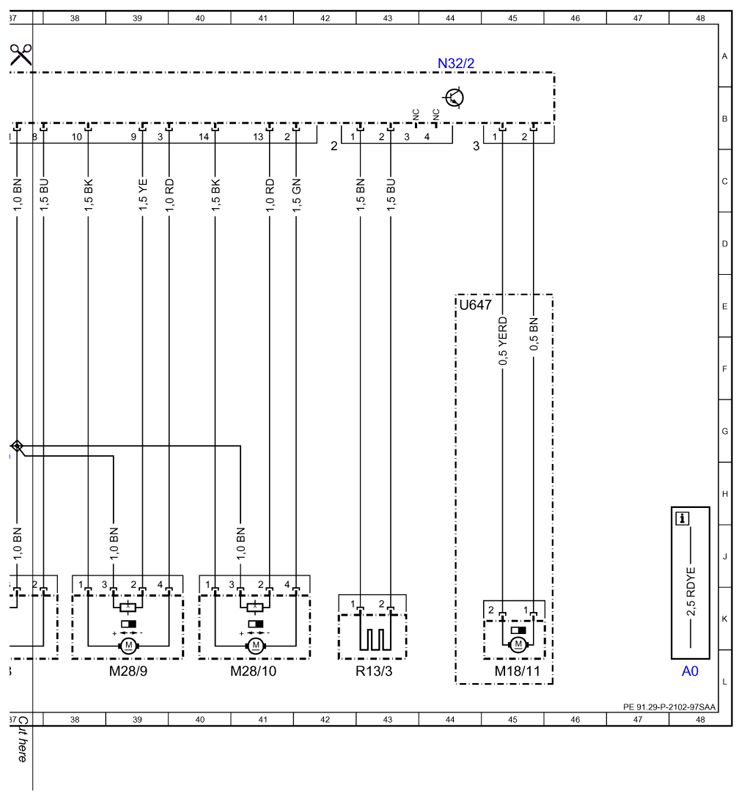

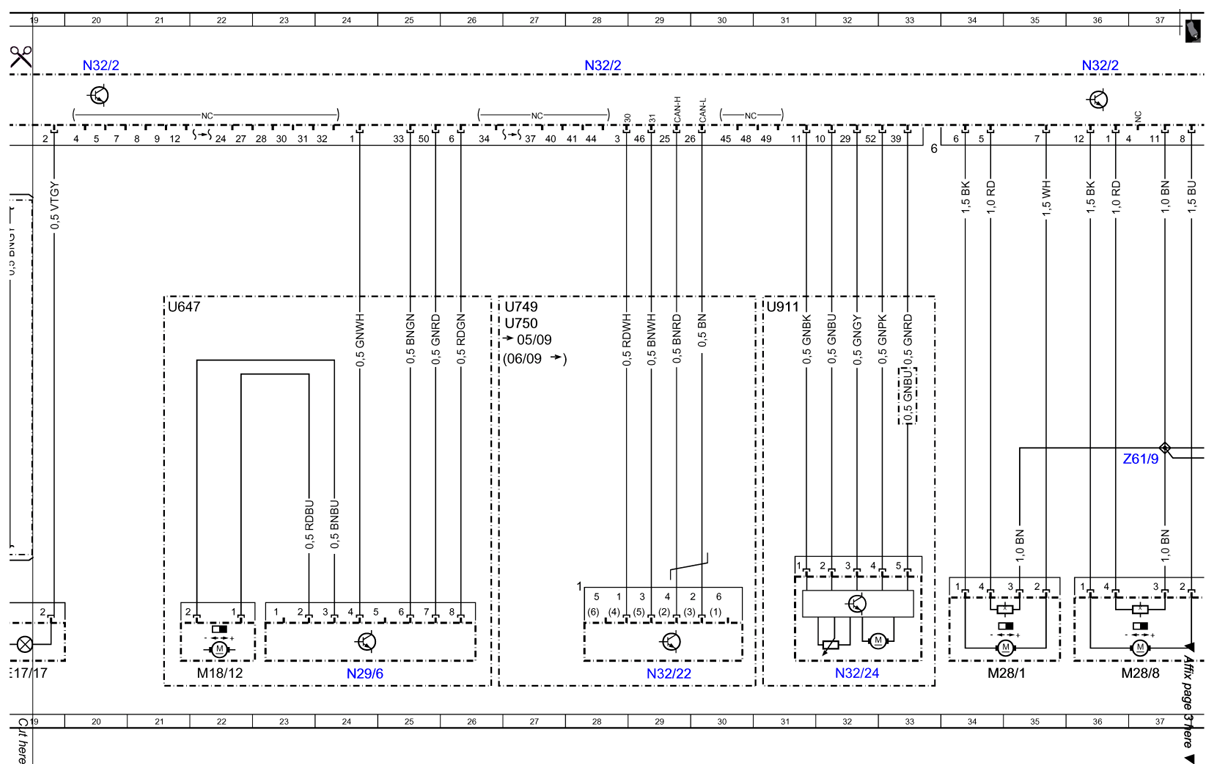

| A0 |
Color code key |
48L |
| CAN B |
Interior CAN |
6K |
| E17/17 |
Right rear footwell lamp |
19L |
| F1/7 |
Left instrument panel fuse box |
2L |
| F1/7f102 |
Fuse 102 |
1K |
| K18/5 |
Right front seat belt comfort solenoid |
8L |
| M18/11 |
Right front seat cushion ventilation motor group |
45L |
| M18/12 |
Right front seat backrest ventilation motor group |
22L |
| M28/1 |
Right front seat fore/aft adjustment motor |
34L |
| M28/10 |
Right front seat height adjustment motor |
41L |
| M28/4 |
Right front head restraint motor |
14L |
| M28/5 |
Right front backrest angle adjustment motor |
12L |
| M28/8 |
Right front seat cushion fore/aft motor |
37L |
| M28/9 |
Right front seat cushion inclination motor |
39L |
| N29/6 |
Right front seat ventilation blower regulator |
24L |
| N32/2 |
Right front seat control unit |
4A |
| N32/2 |
Right front seat control unit |
12A |
| N32/2 |
Right front seat control unit |
20A |
| N32/2 |
Right front seat control unit |
28A |
| N32/2 |
Right front seat control unit |
36A |
| N32/2 |
Right front seat control unit |
44A |
| N32/22 |
Right front dynamic seat control unit |
29L |
| N32/24 |
Front passenger lumbar support regulator control unit |
32L |
| R13/3 |
Right front seat heated cushion |
43L |
| R13/4 |
Right front backrest heated cushion |
10L |
| U12 |
Valid for left-hand drive vehicles |
17D |
| U13 |
Valid for right-hand drive vehicles |
17D |
| U647 |
Valid for seat ventilation |
21E |
| U647 |
Valid for seat ventilation |
44E |
| U749 |
Valid for multicontour seat (MCS [MKS]) |
27E |
| U750 |
Valid for dynamic seat (DS [FDS]) |
27E |
| U911 |
Valid for lumbar support |
31E |
| W18 |
Ground (left front seat crossmember) |
18E |
| W19 |
Ground (right front seat crossmember) |
8H |
| W19 |
Ground (right front seat crossmember) |
2E |
| W19 |
Ground (right front seat crossmember) |
18E |
| W26/2 |
Ground (seat, right front sidebag) |
16L |
| X28/30 |
Passenger-side FFS [RBA]/seat airbag separation point |
18H |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
6L |
| Z6/30 |
Circuit 31 connector sleeve |
16E |
| Z61/11 |
Front passenger seat backrest/head restraint motor connector sleeve |
11E |
| Z61/11 |
Front passenger seat backrest/head restraint motor connector sleeve |
13E |
| Z61/9 |
Wiring harness connector sleeve for seat, terminal 31K |
37G |
