Lift/jack up vehicle - AR00.60-P-1000SX

MODEL 221, 216

Shown on model 211

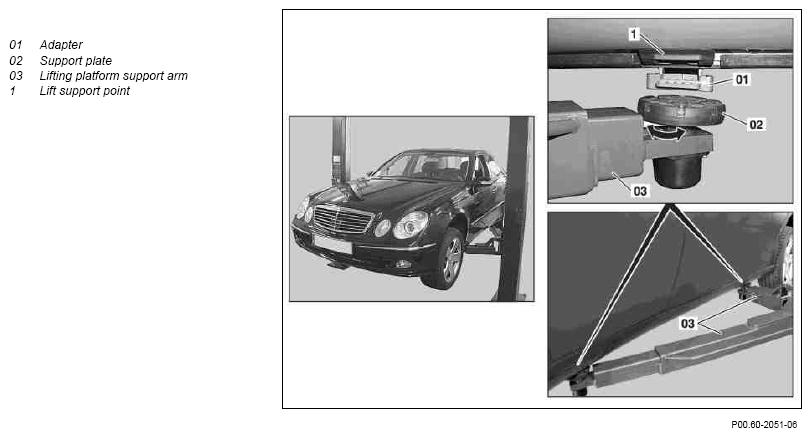

Fig 1: Identifying Lifting Platform Support Components

Courtesy of MERCEDES-BENZ USA

	Lift/lower vehicle
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Raise vehicle with lifting platform and secure on lifting platform	When removing major assemblies (e.g. engine, transmission, axles) To prevent the vehicle from falling down when removing major assemblies, the vehicle must be secured on the lifting platform. Once the vehicle is secured on the lifting platform, it is possible to remove the underfloor panelings.	AR00.60-P-0100SX
2	Clip adapter (01) into lift support points (1) at side skirts	When removing underfloor panelings	Figure
3	Adjust support plates (02) of lifting platform support arms (03) to height of vehicle	When the vehicle is not secured Rotate support plates (02) until they are press against the adapters (01) or the lift support points (1) of the side skirts.
4	Raise vehicle with lifting platform	When the vehicle is not secured Two-post lift	*WE58.40-Z-1001-05A
5	Lower vehicle in reverse order
	Jack up/lower vehicle
6	Lift vehicle with inspection pit lift or floor jack	Pit lift	*WE58.40-Z-1002-05A
		Floor jack	*WE58.40-Z-1007-05A
7	Secure the vehicle against tilting and toppling.	Place jack stands beneath lift support points (1). Jack stand	*WE58.40-Z-1008-05A
8	Lower vehicle in reverse order

Fig 2: Identifying Adapter Kit (203 589 02 31 00)

Courtesy of MERCEDES-BENZ USA

WORKSHOP EQUIPMENT

WE58.40-Z-1001-05A	Two-post lifting platform
WE58.40-Z-1002-05A	Pit lift
WE58.40-Z-1007-05A	Floor jack
WE58.40-Z-1008-05A	Jack stand
