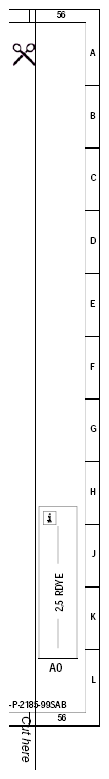

| A0 |
Explanation of color codes |
48 L |
| A6 |
STH or HB heater unit |
20 L |
| N121 |
TLC [HDS] control module |
32 L |
| N2/13 |
WSS control unit (Weight Sensing System) |
12 L |
| N25/6 |
Rear seats control module |
35 L |
| N26/9 |
Special vehicle multifunction control module (SVMCM [MSS]) |
43 L |
| N32/2 |
Right front seat control module |
9 L |
| N62 |
PTS control module |
24 L |
| N69/2 |
Right front door control module |
16 L |
| N69/4 |
Rear right door control module |
5 L |
| N70 |
Overhead control panel control module |
28 L |
| N88 |
TPM control module |
39 L |
| U1 |
Valid for {{USA}} |
11 G |
| U520 |
Valid for taxi |
41 G |
| U538 |
Valid for Parktronic System |
23 G |
| U579 |
Valid for stationary heater (STH) |
19 G |
| U645 |
Valid for tire pressure monitor system |
38 G |
| U658 |
Valid for remote trunk locking |
30 G |
| W19 |
Ground (right front seat crossmember) |
6 E |

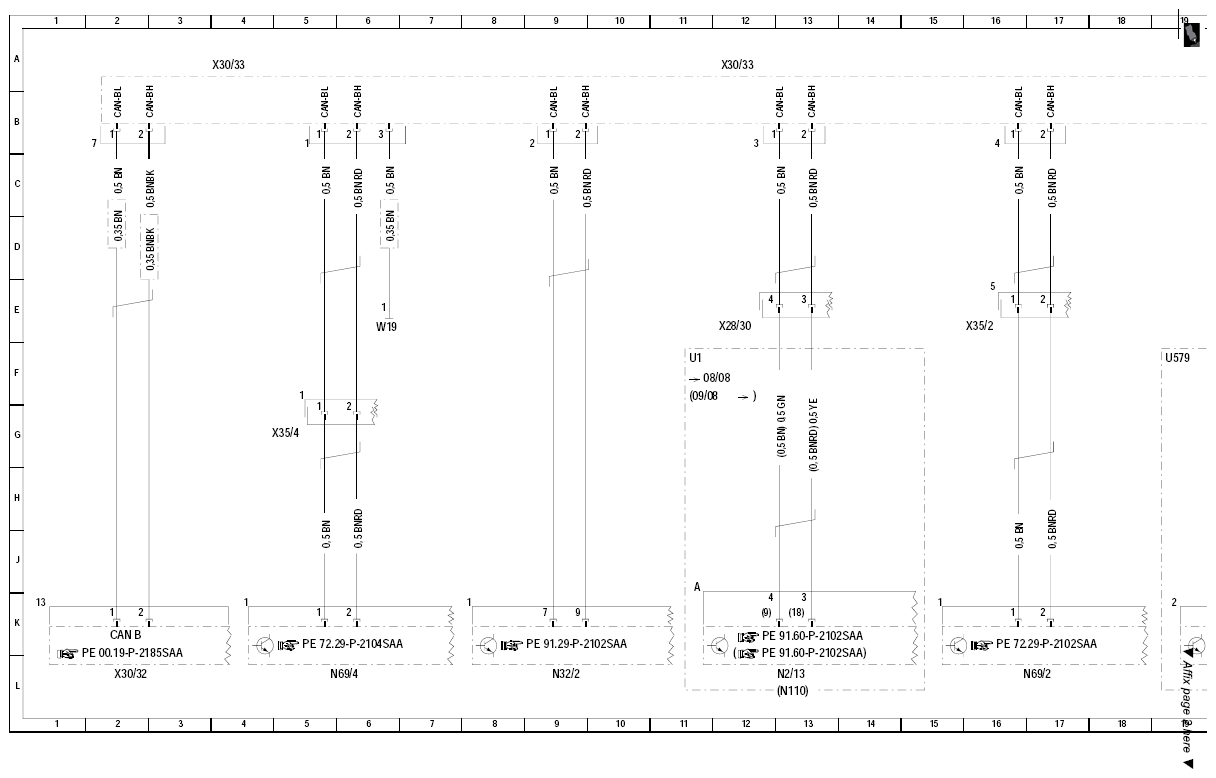

| X25/8 |
Overhead control panel and FFS [RBA] connector |
27 E |
| X28/30 |
Passenger-side FFS [RBA]/seat airbag separation point |
12 E |

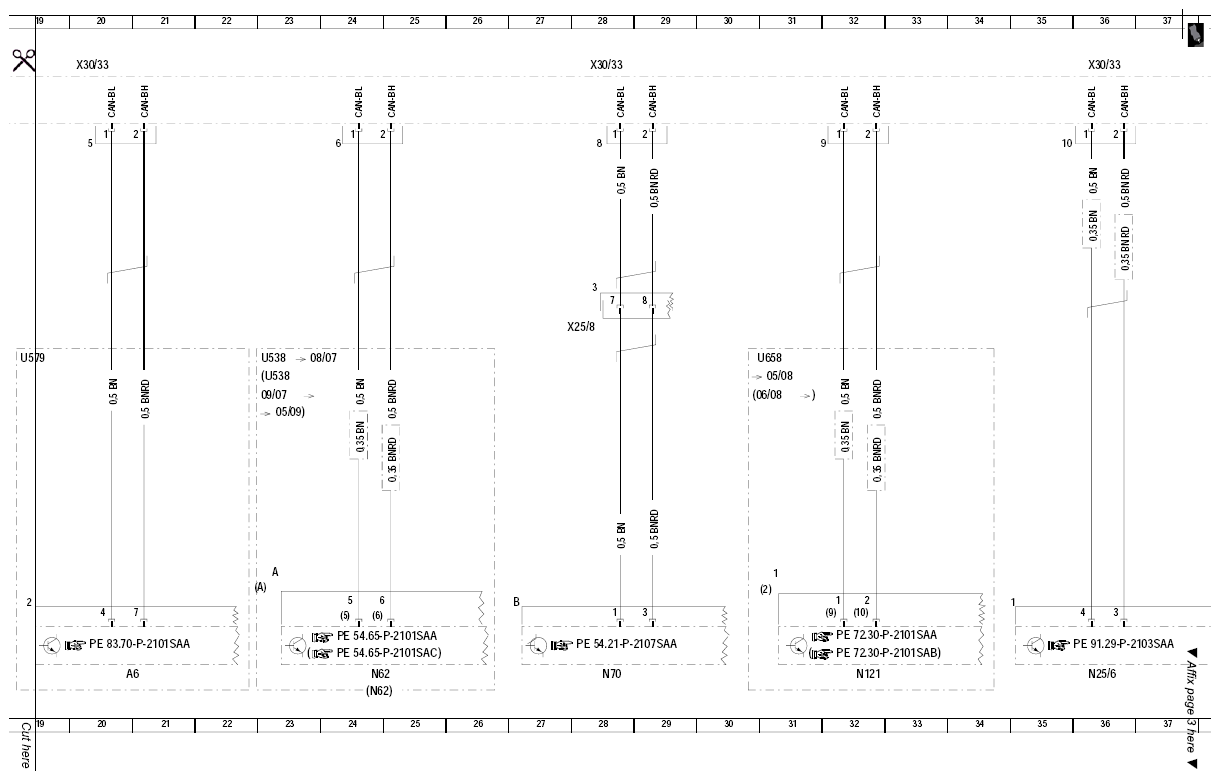

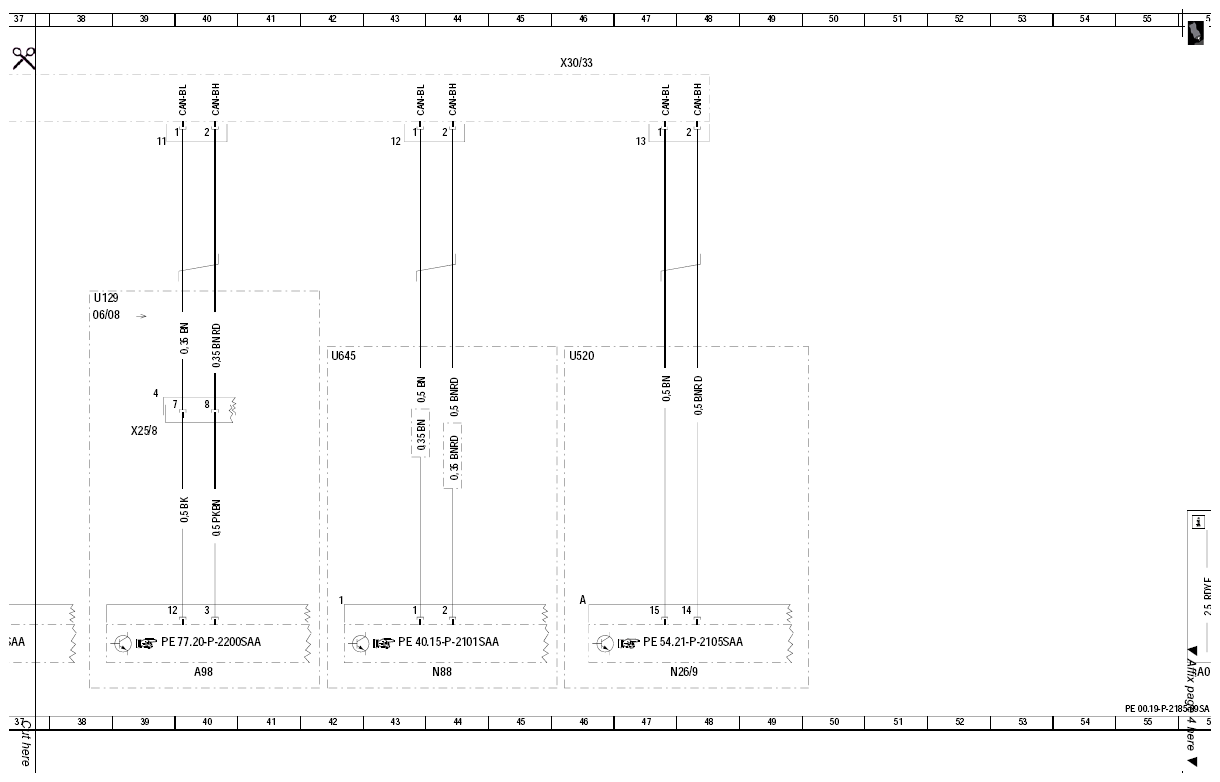

| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
2 L |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
3 A |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
12 A |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
20 A |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
28 A |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
36 A |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
43 A |
| X35/2 |
Right front door and FFS [RBA] connector |
15 E |
| X35/4 |
Right rear door separation point |
4 G |
