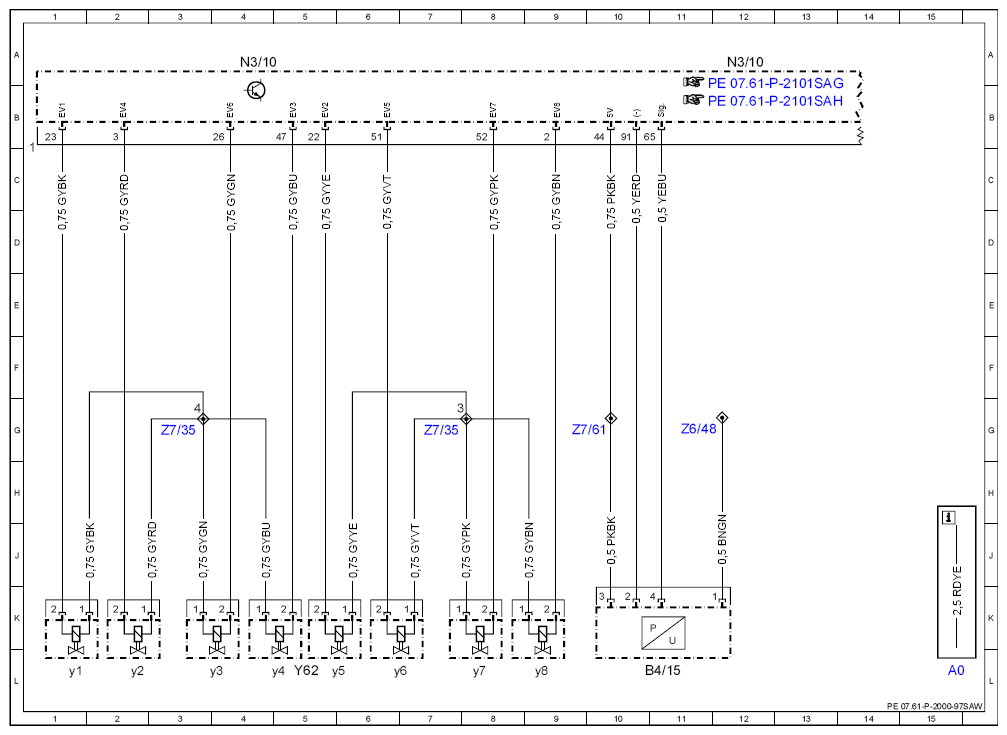

Wiring diagram, fuel injection and ignition system ME-SFI - PE07.61-P-2000-97SAW
ENGINE 156 in MODEL 221.0 /1 injection system
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | |
| B4/15 | Fuel pressure sensor | |
| N3/10 | ME-SFI [ME] control unit | |
| N3/10 | ME-SFI [ME] control unit | |
| Y62 | Fuel injection valves | |
| Y62y1 | Cylinder 1 fuel injection valve | |
| Y62y2 | Cylinder 2 fuel injection valve | |
| Y62y3 | Cylinder 3 fuel injection valve | |
| Y62y4 | Cylinder 4 fuel injection valve | |
| Y62y5 | Cylinder 5 fuel injection valve | |
| Y62y6 | Cylinder 6 fuel injection valve | |
| Y62y7 | Cylinder 7 fuel injection valve | |
| Y62y8 | Cylinder 8 fuel injection valve | |
| Z6/48 | Ground connector sleeve | |
| Z7/35 | Circuit 87 M1e connector sleeve | |
| Z7/35 | Circuit 87 M1e connector sleeve | |
| Z7/61 | 5V output 2 connector sleeve |
