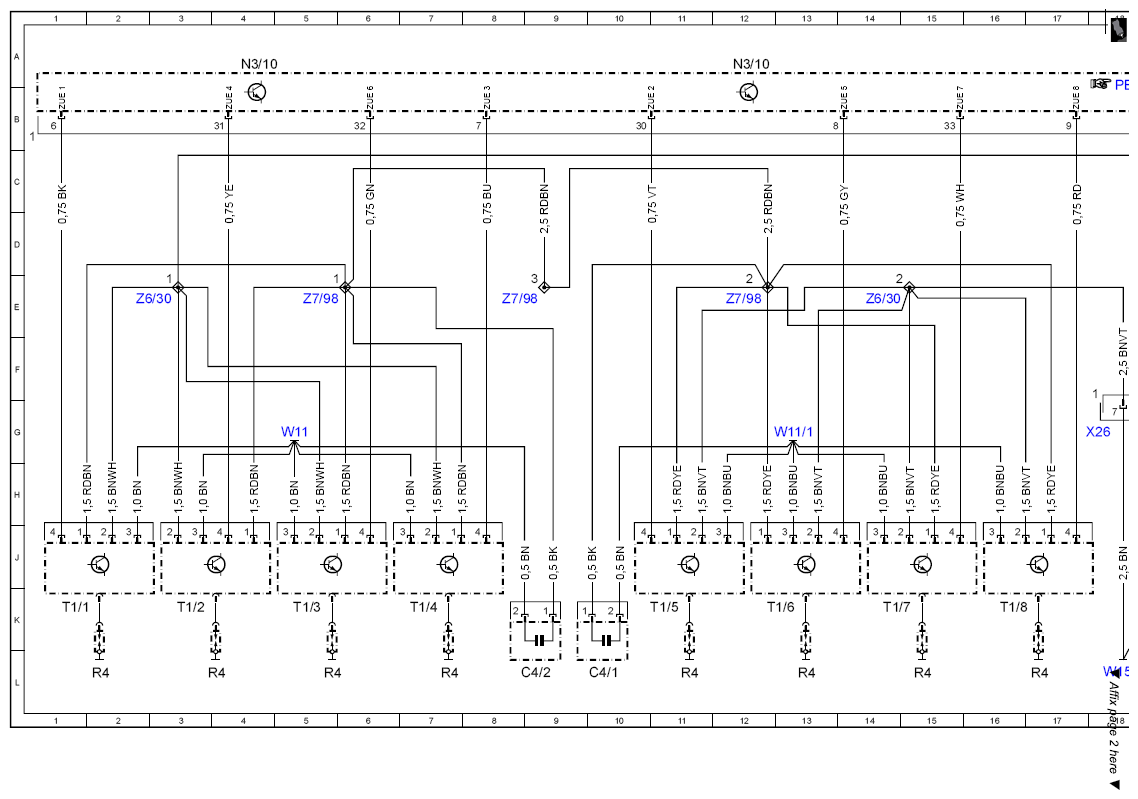

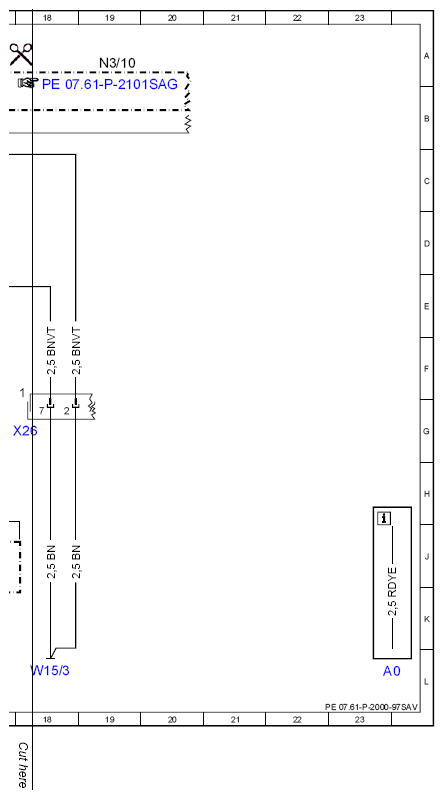

Wiring diagram, fuel injection and ignition system ME-SFI - PE07.61-P-2000-97SAV
ENGINE 156 in MODEL 221.0 /1 ignition system
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | |
| C4/1 | Radio interference suppression capacitor 1 | |
| C4/2 | Radio interference suppression capacitor 2 | |
| N3/10 | ME-SFI [ME] control unit | |
| N3/10 | ME-SFI [ME] control unit | |
| N3/10 | ME-SFI [ME] control unit | |
| R4 | Spark plugs | |
| R4 | Spark plugs | |
| R4 | Spark plugs | |
| R4 | Spark plugs | |
| R4 | Spark plugs | |
| R4 | Spark plugs | |
| R4 | Spark plugs | |
| R4 | Spark plugs | |
| T1/1 | Cylinder 1 ignition coil | |
| T1/2 | Cylinder 2 ignition coil | |
| T1/3 | Cylinder 3 ignition coil | |
| T1/4 | Cylinder 4 ignition coil | |
| T1/5 | Cylinder 5 ignition coil | |
| T1/6 | Cylinder 6 ignition coil | |
| T1/7 | Cylinder 7 ignition coil | |
| T1/8 | Cylinder 8 ignition coil | |
| W11 | Ground (engine - electrical line connected) | |
| W11/1 | Ground (engine - ground strap) | |
| W15/3 | Ground (electronics) | |
| X26 | Interior and engine wiring harness connector | |
| Z6/30 | Circuit 31 connector sleeve | |
| Z6/30 | Circuit 31 connector sleeve | |
| Z7/98 | Circuit 87 M3e connector sleeve | |
| Z7/98 | Circuit 87 M3e connector sleeve | |
| Z7/98 | Circuit 87 M3e connector sleeve |
