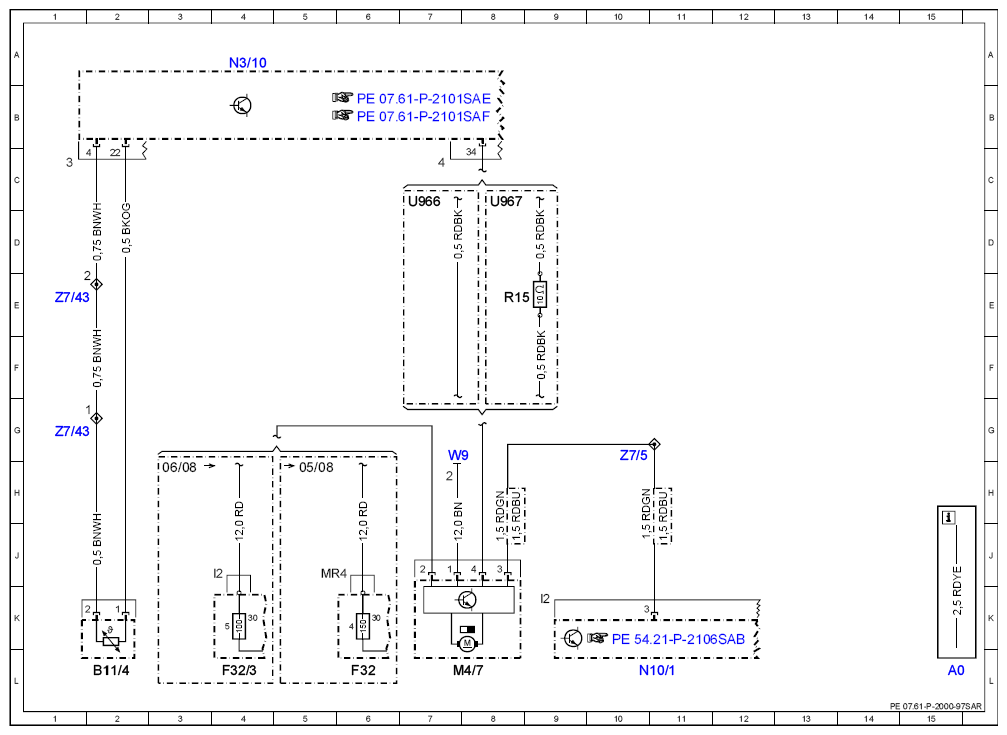

Wiring diagram, fuel injection and ignition system ME-SFI - PE07.61-P-2000-97SAR
ENGINE 275 in MODEL 221.1 Engine cooling system
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| B11/4 | Coolant temperature sensor | 2L |
| F32 | Front prefuse | 6L |
| F32/3 | Engine compartment prefuse box | 4L |
| F32/3f5 | Fuse 5 | 4K |
| F32f4 | Fuse 4 | 6K |
| M4/7 | Engine and AC electric suction fan with integrated control | 7L |
| N10/1 | Front SAM control unit with fuse and relay module | 10L |
| N3/10 | ME-SFI [ME] control unit | 4A |
| R15 | Electric suction fan series resistor | 8E |
| U966 | Valid for engine 275.953 | 7C |
| U967 | Valid for engine 275.982 | 8C |
| W9 | Ground (left front, at lamp unit) | 7G |
| Z7/43 | Sensor ground connector sleeve | 1G |
| Z7/43 | Sensor ground connector sleeve | 1E |
| Z7/5 | Circuit 87 connector sleeve | 10G |
