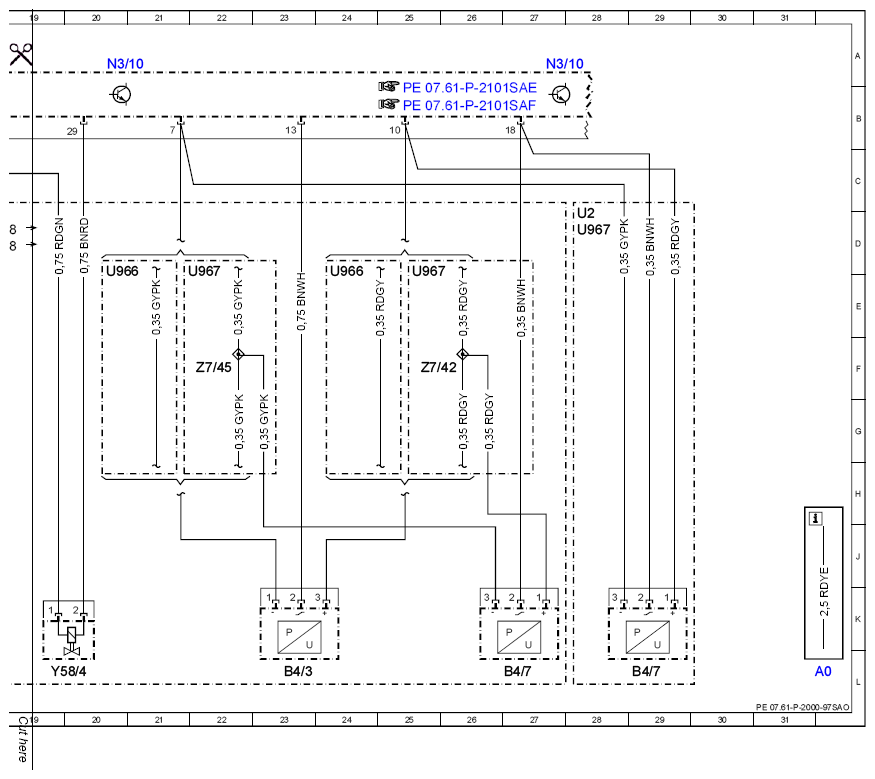

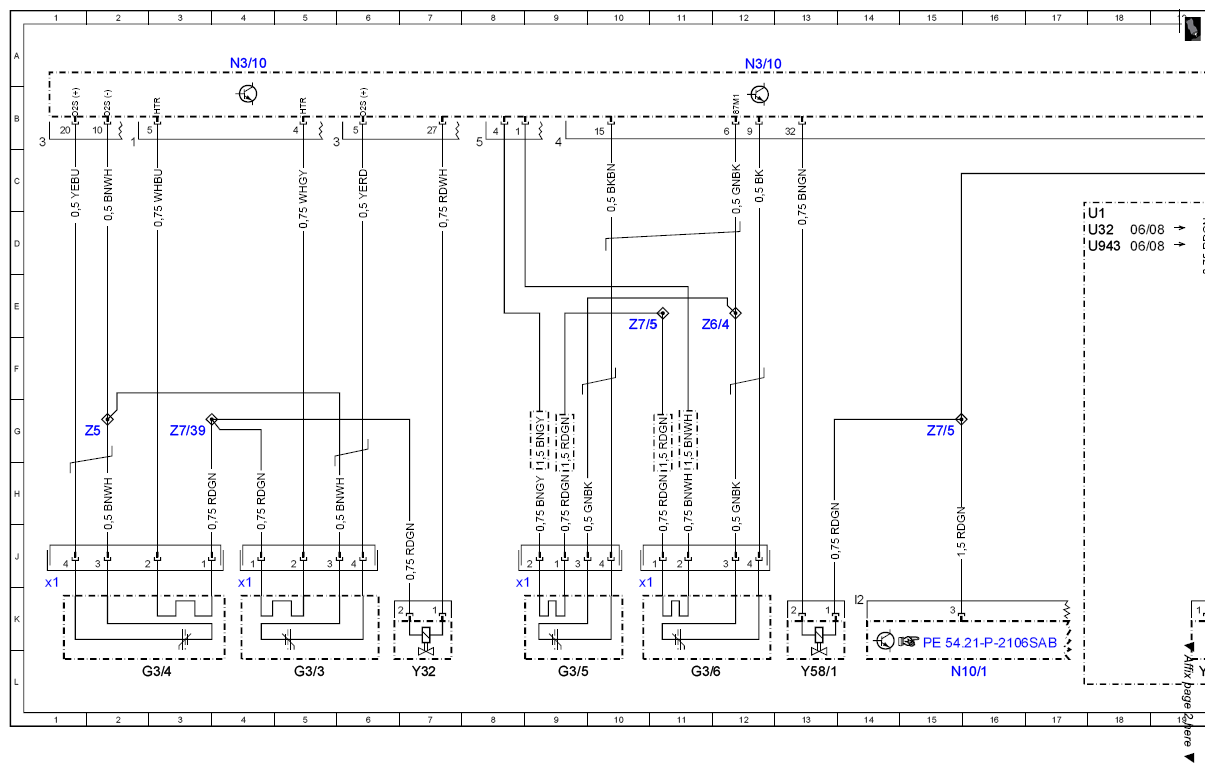

Wiring diagram, fuel injection and ignition system ME-SFI - PE07.61-P-2000-97SAO
ENGINE 275 in MODEL 221.1 Exhaust system
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| B4/3 | Fuel tank pressure sensor | 23L |
| B4/7 | Fuel pressure sensor | 29L |
| B4/7 | Fuel pressure sensor | 27L |
| G3/3 | Left O2 sensor upstream of TWC [KAT] | 5L |
| G3/3x1 | Left O2 sensor upstream of TWC [KAT] connector | 4J |
| G3/4 | Right O2 sensor upstream of TWC [KAT] | 3L |
| G3/4x1 | Right O2 sensor upstream of TWC [KAT] connector | 1J |
| G3/5 | Left O2 sensor downstream of TWC [KAT] | 9L |
| G3/5x1 | Left O2 sensor downstream of TWC [KAT] connector | 8J |
| G3/6 | Right O2 sensor downstream of TWC [KAT] | 11L |
| G3/6x1 | Right O2 sensor downstream of TWC [KAT] connector | 10J |
| N10/1 | Front SAM control unit with fuse and relay module | 15L |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 27A |
| U1 | Valid for {{USA}} | 18D |
| U2 | Valid for all except{{USA}} | 28D |
| U32 | Valid for {{Kanada}} | 18D |
| U943 | Valid for South Korea | 18D |
| U966 | Valid for engine 275.953 | 24E |
| U966 | Valid for engine 275.953 | 20E |
| U967 | Valid for engine 275.982 | 25E |
| U967 | Valid for engine 275.982 | 21E |
| U967 | Valid for engine 275.982 | 28D |
| Y32 | Air pump switchover valve | 7L |
| Y58/1 | Purge control valve | 13L |
| Y58/4 | Activated charcoal filter shutoff valve | 19L |
| Z5 | Connector sleeve (solder connector in harness) | 2G |
| Z6/4 | Ground connector sleeve (sensor downstream of TWC) | 12E |
| Z7/39 | Circuit 87 M2i connector sleeve | 3G |
| Z7/42 | Sensor ground connector sleeve | 25F |
| Z7/45 | Voltage supply connector sleeve | 22F |
| Z7/5 | Circuit 87 connector sleeve | 15G |
| Z7/5 | Circuit 87 connector sleeve | 10E |
