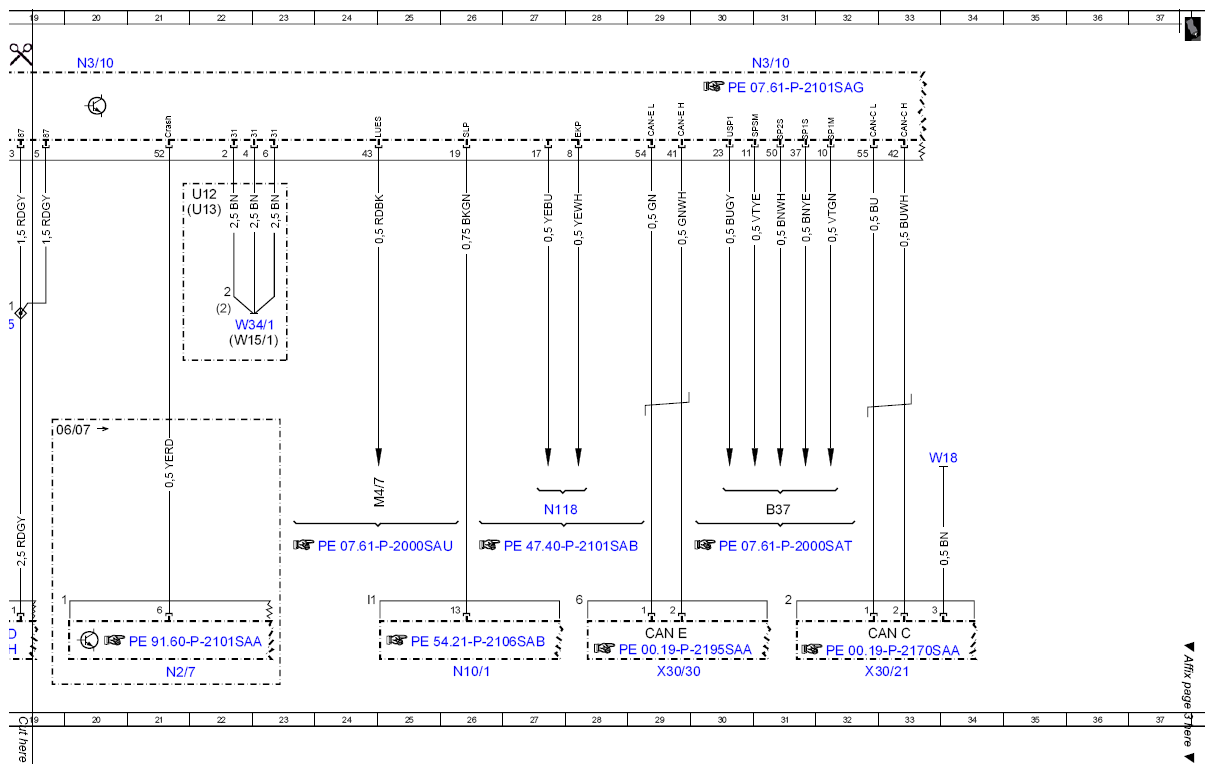

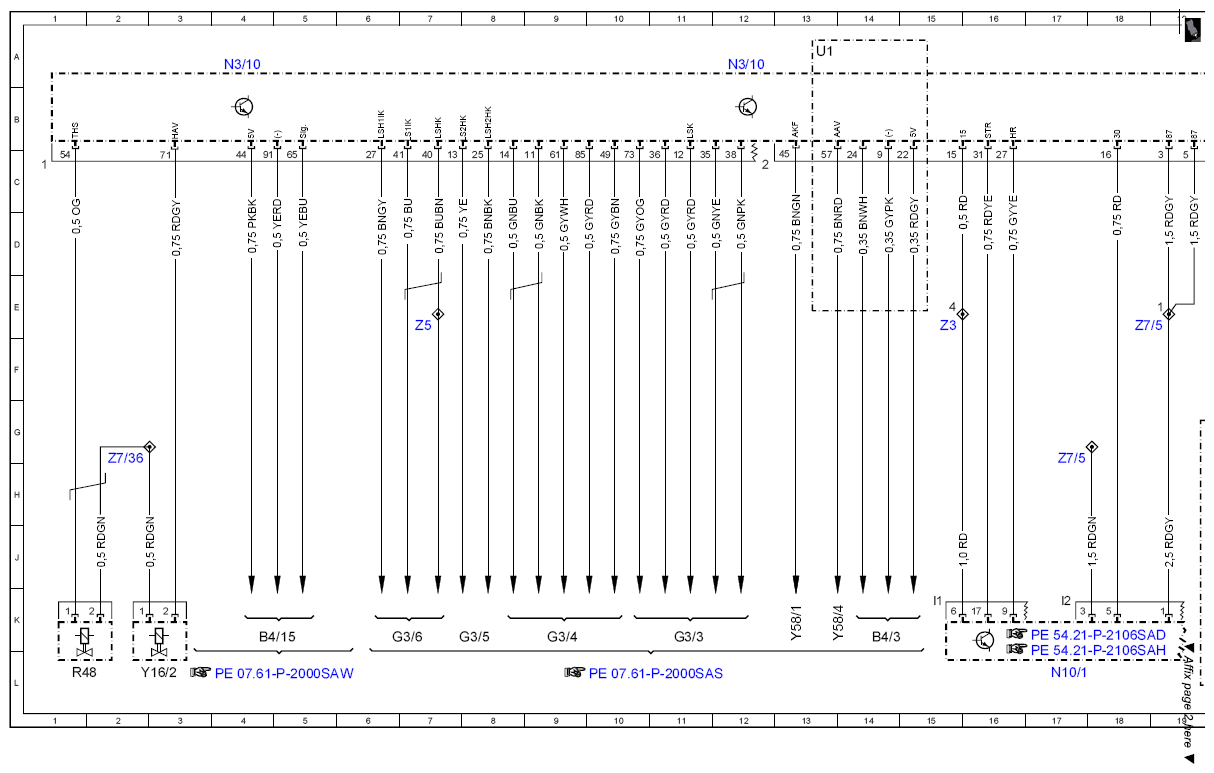

Wiring diagram for ME-SFI [ME] gasoline injection and ignition system control unit - PE07.61-P-2101-97SAH
ENGINE 156 in MODEL 221.0 /1 control unit N3/10, vehicle side
| Code: | Designation: | Position: |
|---|---|---|

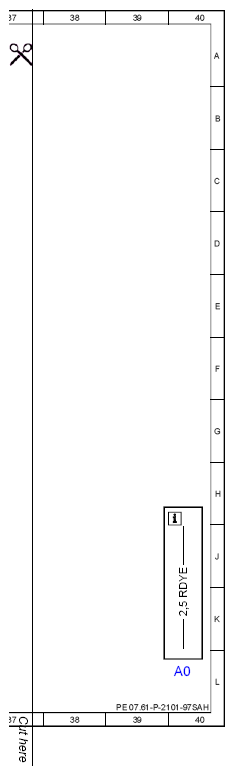

| A0 | Color code key | 40L |
| B37 | Accelerator pedal sensor | 31H |
| B4/15 | Fuel pressure sensor | 4K |
| B4/3 | Fuel tank pressure sensor | 14K |
| CAN C | Drive train CAN | 33K |
| CAN E | Chassis CAN | 29K |
| G3/3 | Left O2 sensor upstream of TWC [KAT] | 11K |
| G3/4 | Right O2 sensor upstream of TWC [KAT] | 9K |
| G3/5 | Left O2 sensor downstream of TWC [KAT] | 8K |
| G3/6 | Right O2 sensor downstream of TWC [KAT] | 7K |
| M4/7 | Engine and AC electric suction fan with integrated control | 25H |
| N10/1 | Front SAM control unit with fuse and relay module | 17L |
| N10/1 | Front SAM control unit with fuse and relay module | 26L |
| N118 | Fuel pump control unit | 27H |
| N2/7 | Restraint systems control unit | 21L |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 31A |
| R48 | Two-disk thermostat heating element | 1L |
| U1 | Valid for {{USA}} | 13A |
| U12 | Valid for left-hand drive vehicles | 22C |
| U12 | Valid for left-hand drive vehicles | 34E |
| U13 | Valid for right-hand drive vehicles | 22D |
| U13 | Valid for right-hand drive vehicles | 34E |
| W15/1 | Ground (right footwell) | 22F |
| W15/1 | Ground (right footwell) | 35E |
| W18 | Ground (left front seat crossmember) | 33H |
| W34/1 | Ground (electronics - left footwell) | 22E |
| W34/1 | Ground (electronics - left footwell) | 35E |
| X30/21 | Drive train CAN voltage distributor connector | 32L |
| X30/30 | Chassis CAN/FFS [RBA] voltage distributor connector | 29L |
| Y16/2 | Heating system shutoff valve | 3L |
| Y58/1 | Purge control valve | 13K |
| Y58/4 | Activated charcoal filter shutoff valve | 14K |
| Z3 | Tml. 15 connector sleeve | 15E |
| Z5 | Connector sleeve (solder connector in harness) | 7E |
| Z7/36 | Circuit 87 M2e connector sleeve | 2G |
| Z7/5 | Circuit 87 connector sleeve | 17G |
| Z7/5 | Circuit 87 connector sleeve | 18E |
