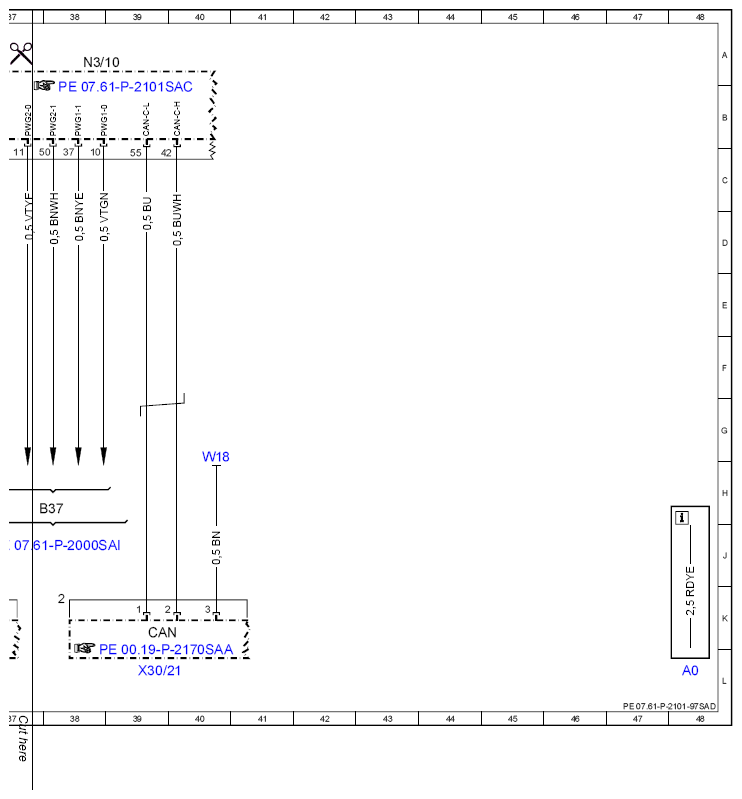

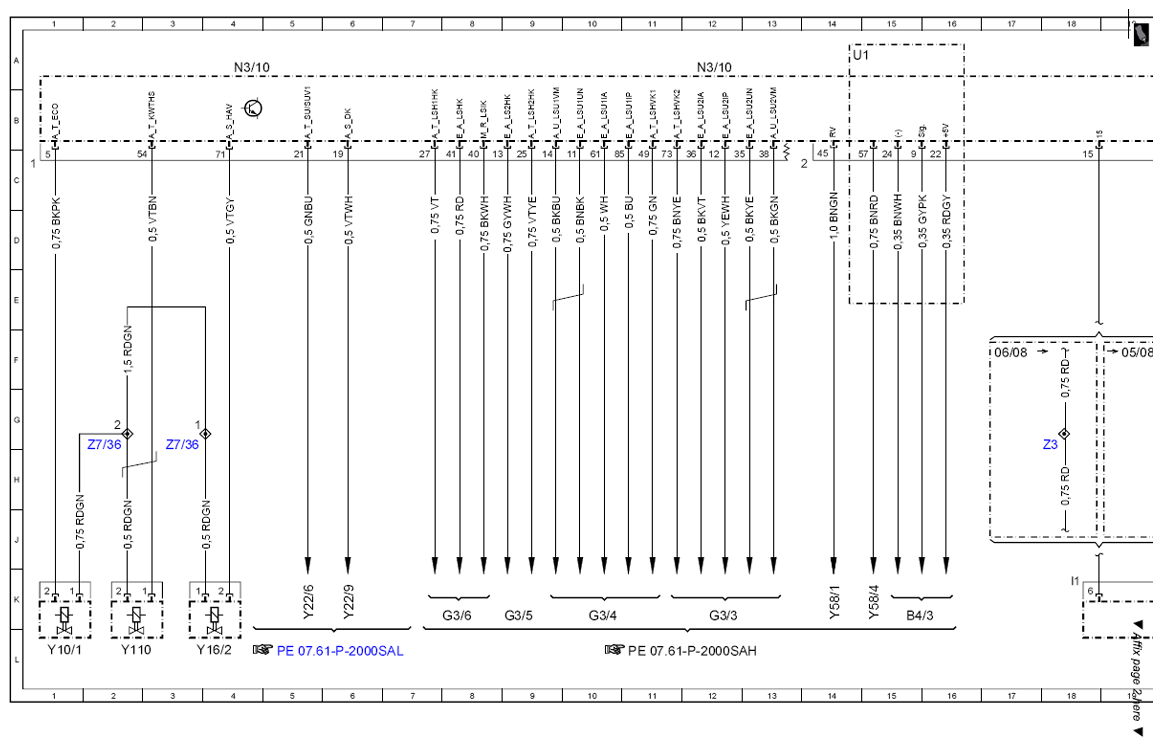

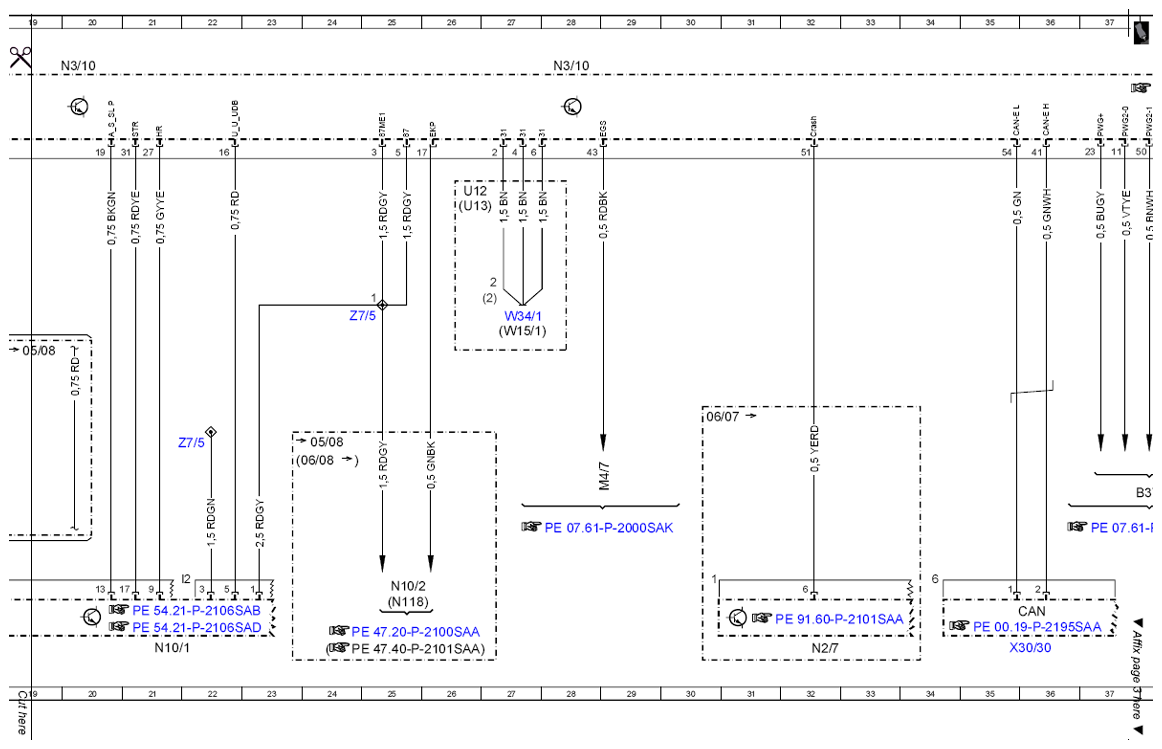

Wiring diagram for ME-SFI [ME] gasoline injection and ignition system control unit - PE07.61-P-2101-97SAD
ENGINE 273 in MODEL 221.0 /1 control unit N3/10, vehicle side
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| B37 | Accelerator pedal sensor | 38H |
| B4/3 | Fuel tank pressure sensor | 15K |
| CAN C | Drive train CAN | 39K |
| CAN E | Chassis CAN | 36K |
| G3/3 | Left O2 sensor upstream of TWC [KAT] | 12K |
| G3/4 | Right O2 sensor upstream of TWC [KAT] | 10K |
| G3/5 | Left O2 sensor downstream of TWC [KAT] | 9K |
| G3/6 | Right O2 sensor downstream of TWC [KAT] | 8K |
| M4/7 | Engine and AC electric suction fan with integrated control | 28H |
| N10/1 | Front SAM control unit with fuse and relay module | 21L |
| N10/2 | Rear SAM control unit with fuse and relay module | 25K |
| N118 | Fuel pump control unit | 25K |
| N2/7 | Restraint systems control unit | 32L |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 38A |
| N3/10 | ME-SFI [ME] control unit | 28A |
| U1 | Valid for USA | 14A |
| U12 | Valid for left-hand drive vehicles | 26C |
| U13 | Valid for right-hand drive vehicles | 26D |
| W15/1 | Ground (right footwell) | 27F |
| W18 | Ground (left front seat crossmember) | 40G |
| W34/1 | Ground (electronics - left footwell) | 27E |
| X30/21 | Drive train CAN voltage distributor connector | 39L |
| X30/30 | Chassis CAN/FFS [RBA] voltage distributor connector | 36L |
| Y10/1 | Power steering pump pressure regulator valve | 1L |
| Y110 | Three-disk thermostat valve | 2L |
| Y16/2 | Heating system shutoff valve | 4L |
| Y22/6 | Variable intake manifold switchover valve | 5K |
| Y22/9 | Intake manifold tumble flap switchover valve | 6K |
| Y58/1 | Purge control valve | 14K |
| Y58/4 | Activated charcoal filter shutoff valve | 15K |
| Z3 | Tml. 15 connector sleeve | 18G |
| Z7/36 | Circuit 87 M2e connector sleeve | 3G |
| Z7/36 | Circuit 87 M2e connector sleeve | 2G |
| Z7/5 | Circuit 87 connector sleeve | 24E |
| Z7/5 | Circuit 87 connector sleeve | 21G |
