Remove/install engine mount or engine crossmember at the rear - AR22.10-P-1180SX
ENGINES 156, 157, 272, 273, 275, 276, 278, 642, 629 in MODEL 221 (except 221.08 /18 /094 /194)
ENGINES 156, 157, 273, 275, 278 in MODEL 216 (except 216.38 /39)
| Remove/install | |||
| Notes on bolted connections with self tapping screws | AH00.00-P-0007-01SF | ||
| 1 | Secure vehicle on vehicle lift | AR00.60-P-0100SX | |
| 2 | Remove rear part section of engine compartment paneling Vehicles without code (Z07) Top protection | AR61.20-P-1105SX | |
| Vehicles with code (Z07) Top protection | AR61.20-P-1105SXS | ||

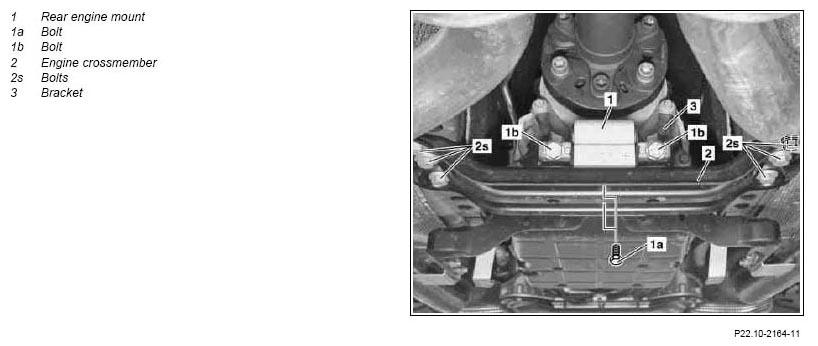

| 3 | Remove bolts (1a) | *BA22.10-P-1005-03D | |
| *BA22.10-P-1005-03C | |||
| 4 | Raise transmission with a transmission jack by about 10 mm | ||
| 5 | Remove bolts (2s) and take off engine crossmember (2) | *BA22.10-P-1007-03D | |
| *BA22.10-P-1007-03C | |||
| 6 | Remove bolts (1b) and rear engine mount (1) from holder (3) on transmission | *BA22.10-P-1004-03D | |
| *BA22.10-P-1004-03C | |||
| 7 | Install in the reverse order |
ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS
| Number | Designation | Model 221.02/05/07/095/12/15/17/195 | |
|---|---|---|---|
| BA22.10-P-1004-03D | Bolt connecting rear engine mount to transmission bracket | Nm | 50 |
| BA22.10-P-1005-03D | Bolt, rear engine mount to rear engine crossmember | Nm | 28 |
| BA22.10-P-1007-03D | Bolt, rear engine crossmember to body | Nm | 45 |
ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS
| Number | Designation | Model 216.371/373/374 /376/377/379 | |
|---|---|---|---|
| BA22.10-P-1004-03C | Bolt connecting rear engine mount to transmission bracket | Nm | 50 |
| BA22.10-P-1005-03C | Bolt, rear engine mount to rear engine crossmember | Nm | 28 |
| BA22.10-P-1007-03C | Bolt, rear engine crossmember to body | Nm | 45 |
