| Code
: |
Designation
: |
Position
: |

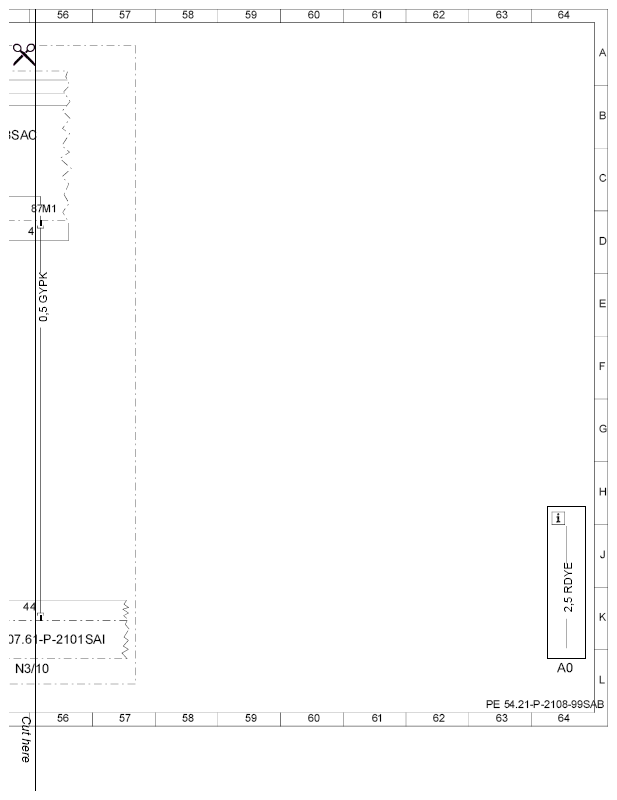

| A0 |
Explanation of color codes |
64 L |

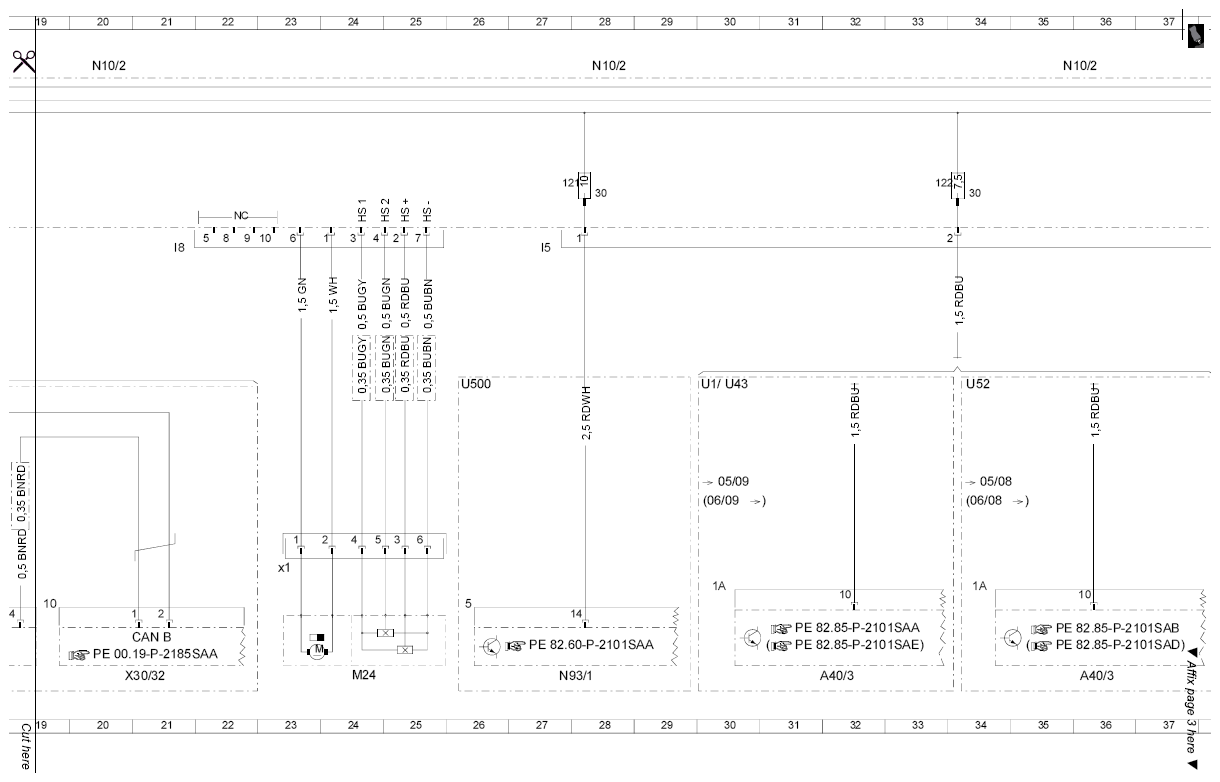

| A40/3 |
COMAND control unit |
25 L |

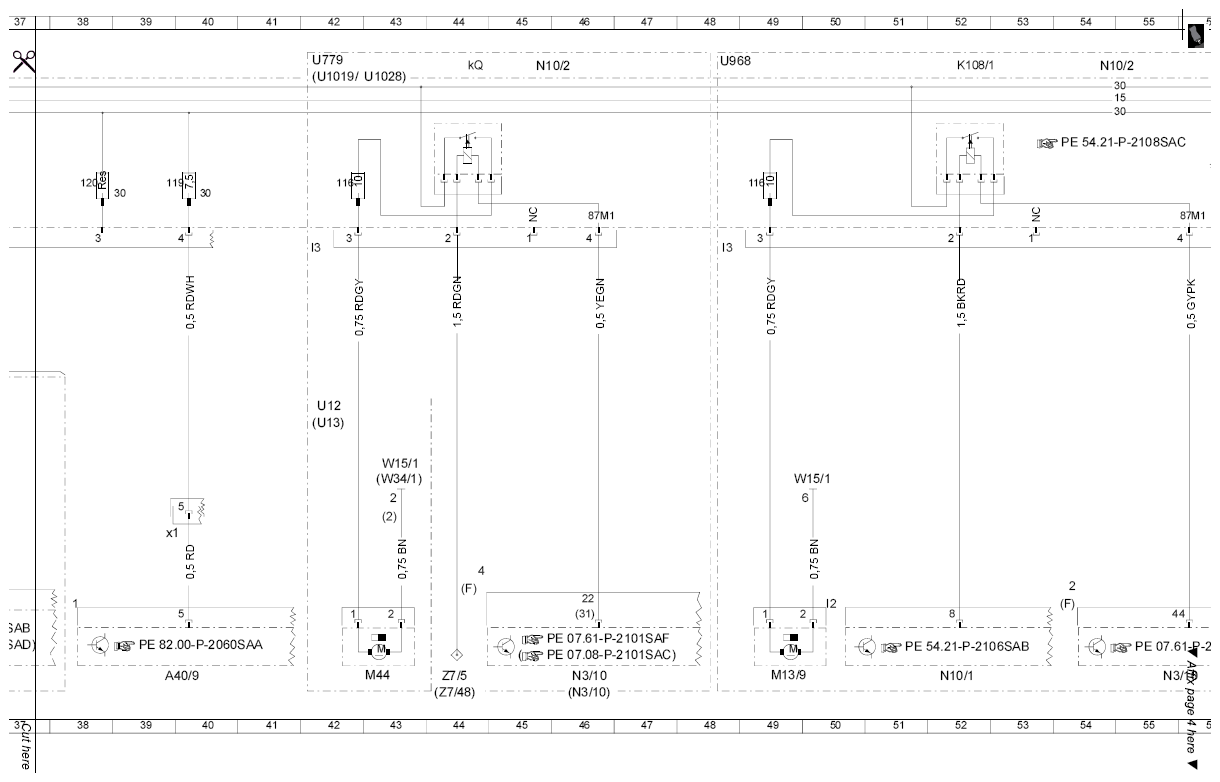

| A40/9 |
Front central operating unit |
29 L |
| A40/9x1 |
Front central operating unit connector |
29 J |

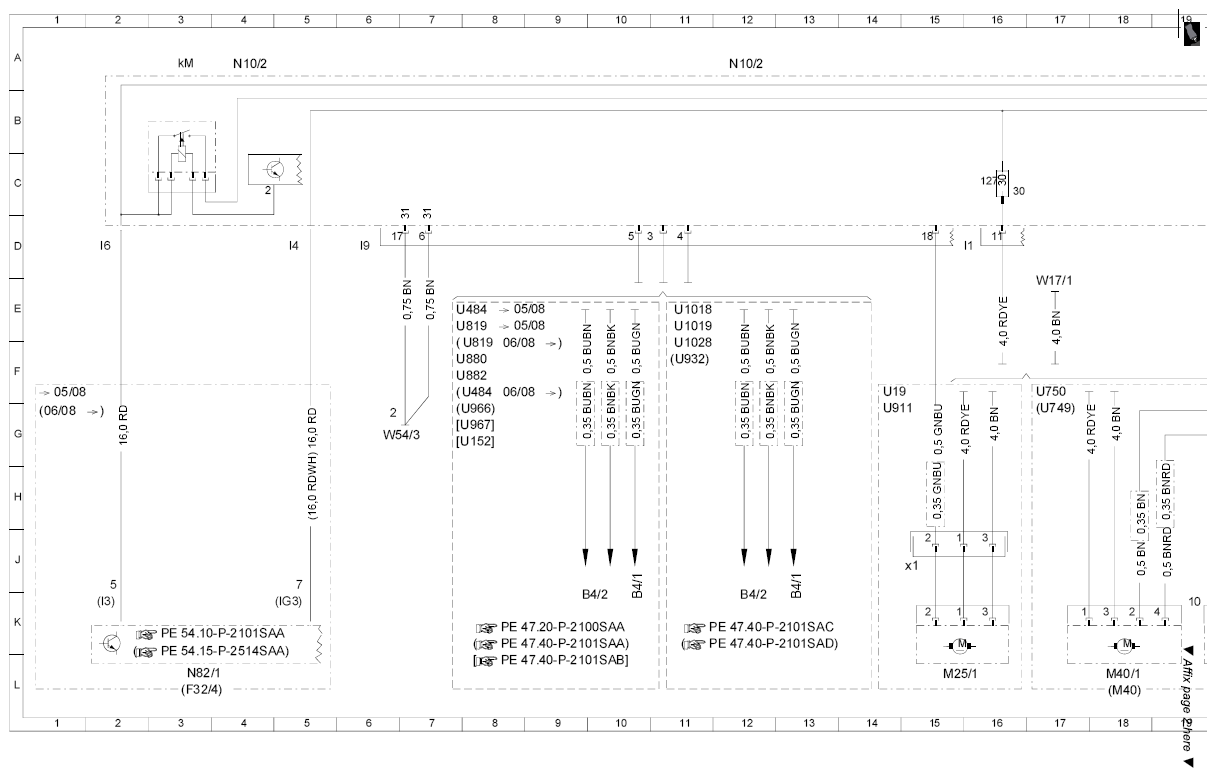

| B4/1 |
Left fuel level sensor |
8J |
| B4/2 |
Right fuel level sensor |
6J |
| M24 |
Rear window blind motor |
18L |
| M24x1 |
Rear window blind motor connector |
16J |
| M40 |
Multicontour seat pneumatic pump |
9L |
| M40/1 |
Pneumatic pump for dynamic seat control |
12L |
| M44 |
Charge air cooler circulation pump |
32 L |
| N10/2 |
Rear SAM control module with fuse and relay module |
4A |
| N10/2 |
Rear SAM control module with fuse and relay module |
12A |
| N10/2 |
Rear SAM control module with fuse and relay module |
20 A |
| N10/2 |
Rear SAM control module with fuse and relay module |
28 A |
| N10/2 |
Rear SAM control module with fuse and relay module |
36 A |
| N10/2 |
Rear SAM control module with fuse and relay module |
44 A |
| N10/2 |
Rear SAM control module with fuse and relay module |
52 A |
| N10/2 |
Rear SAM control module with fuse and relay module |
60 A |
| N10/2f116 |
Fuse 116 |
32 C |
| N10/2f119 |
Fuse 119 |
29 C |
| N10/2f120 |
Fuse 120 |
28 C |
| N10/2f121 |
Fuse 121 |
21 C |
| N10/2f122 |
Fuse 122 |
25 C |
| N10/2f127 |
Fuse 127 |
10C |
| N10/2f141 |
Fuse 141 |
47 C |
| N10/2f142 |
Fuse 142 |
41 C |
| N10/2f143 |
Fuse 143 |
50 C |
| N10/2f144 |
Fuse 144 |
51 C |
| N10/2f145 |
Fuse 145 |
54 C |
| N10/2f146 |
Fuse 146 |
55 C |
| N10/2f148 |
Fuse 148 |
58 C |
| N10/2kM |
Circuit 15 relay |
2A |
| N10/2kQ |
Circulating pump relay |
34 A |
| N123/1 |
Universal Portable CTEL Interface (UPCI [UHI]) control module |
58 L |
| N25/6 |
Rear seats control module |
51 L |
| N28/1 |
Trailer recognition control module |
54 L |
| N3/10 |
ME-SFI [ME] control module |
36 L |
| N62 |
PTS control module |
40 L |
| N62/1 |
Radar senors control unit (SGR) |
43 L |
| N66/10 |
Backup camera voltage supply module |
47 L |
| N66/2 |
Reverse camera control module |
47 L |
| N82/1 |
Vehicle power supply control unit |
2L |
| N93/1 |
Audio tuner control unit |
21 L |
| U1 |
Valid for {{USA}} |
23 F |
| U12 |
Valid for left-hand steering |
32 G |
| U13 |
Valid for right-hand steering |
32 G |
| U152 |
Valid for engine 156 |
5J |
| U43 |
Valid for ECE |
24 F |
| U484 |
Valid for M273 ME |
5H |
| U500 |
Not valid for Sound System |
20 F |
| U52 |
Valid for {{Japan}} |
23 G |
| U538 |
Valid for Parktronic System |
38 F |
| U538 |
Valid for Parktronic System |
38 G |
| U749 |
Valid for multicontour seat (MCS [MKS]) |
8F |
| U750 |
Valid for dynamic seat (DS [FDS]) |
10F |
| U779 |
Valid for engine 275 |
5J |
| U779 |
Valid for engine 275 |
32 F |
| U819 |
Valid for engine 272 |
5H |
| U880 |
Valid for engine 642 |
5J |
| U882 |
Valid for engine 629 |
5J |
| U896 |
Valid for City Assist System |
42 F |
| U899 |
Valid for backup camera |
45 F |
| W15/1 |
Ground (right footwell) |
33 H |
| W17/1 |
Ground (left rear seat) |
10E |
| W34/1 |
Ground (electronics - left footwell) |
33 H |
| W54/3 |
Ground (left rear wheelhouse) |
5G |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
14L |
| Z7/40 |
Circuit 30 connector sleeve |
58 H |
| Z7/5 |
Circuit 87 connector sleeve |
34 L |
