Seam sealing following repair, front end damage - AR97.10-P-4000-01SXS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | White sealing compound, 310 ml, DBL 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
1 Seal spot welds, rivets and MAG seams in repaired area with seam sealant material.
Do not seal openings between MAG seams.
Leave openings open between MAG seams for coating with wax.
Insert plastic plugs and grommets with sealing compound.

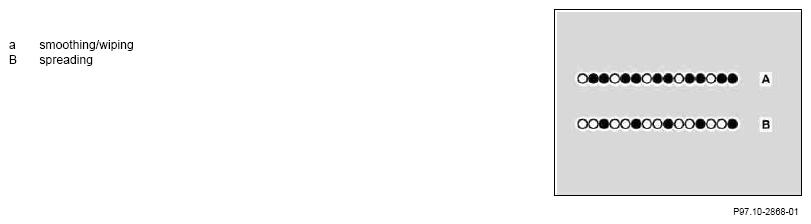

When sealing seams we differentiate between:
a smoothing/wiping
B spreading
Keep sealant out of threads on weld nuts and threaded bolts by masking or covering with cardboard sleeves. Also keep drain openings and contact surfaces for axle attachments, windows and detachable parts free of sealant.
It is necessary to seal accessible spot weld flanges on both sides.
If accessible from one side, only seal corresponding surface. Observe standard seals!

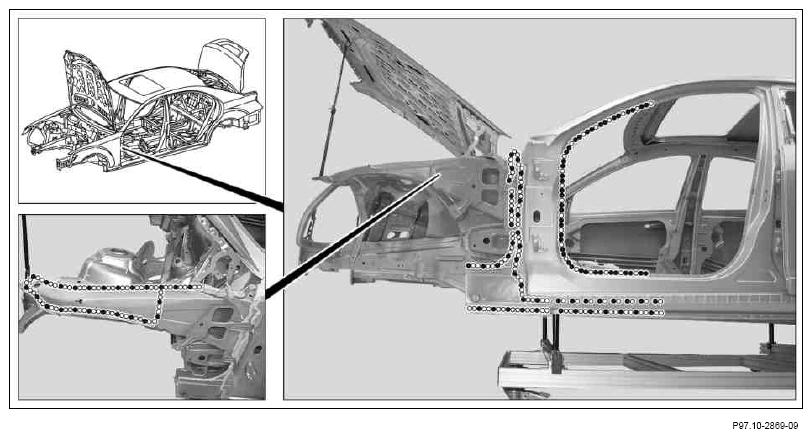

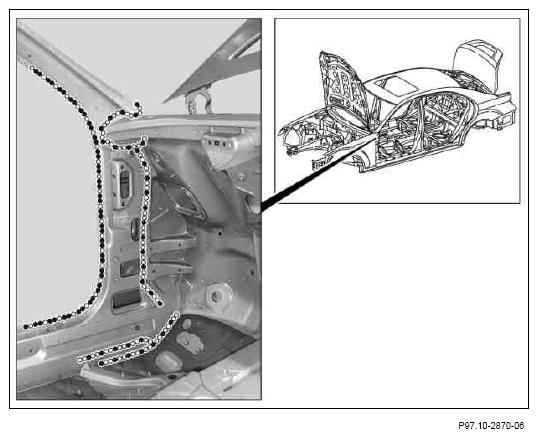

Area of left front outer wheel arch and A-pillar, shown on model 221 without code Z07
Area of A-pillar on longitudinal member and left outer connection, shown on model 221 without code Z07

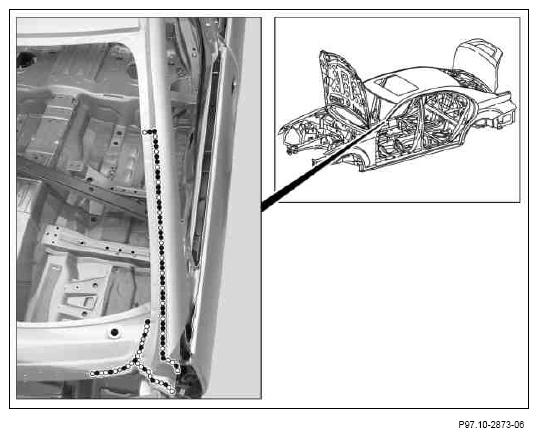

Area of left inner A-pillar, shown on model 221 without code Z07
Area of left A-pillar paneling, shown on model 221 without code Z07
Area of right front water trough

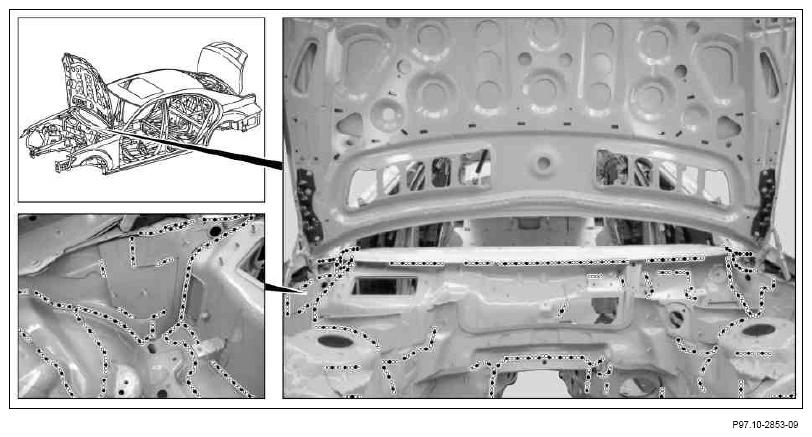

Area of front end

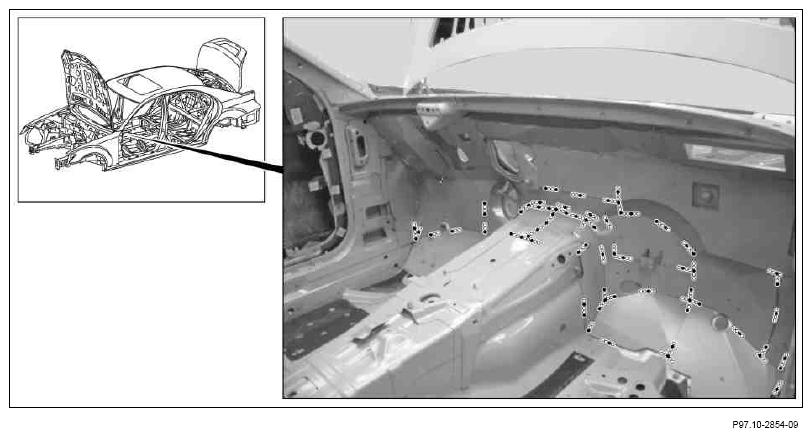

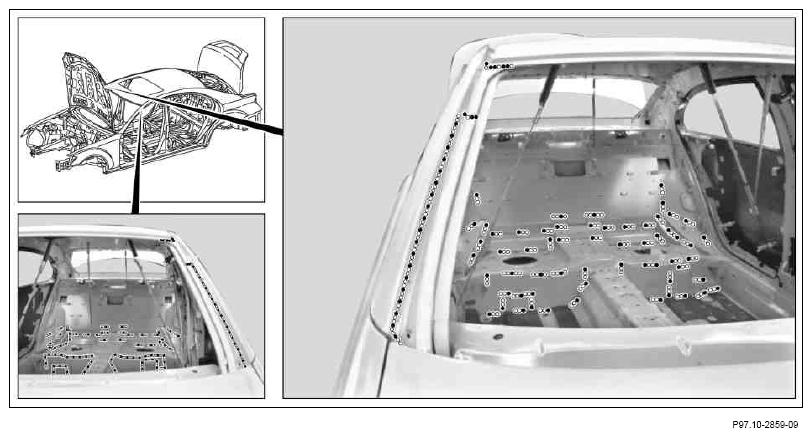

Area of interior compartment

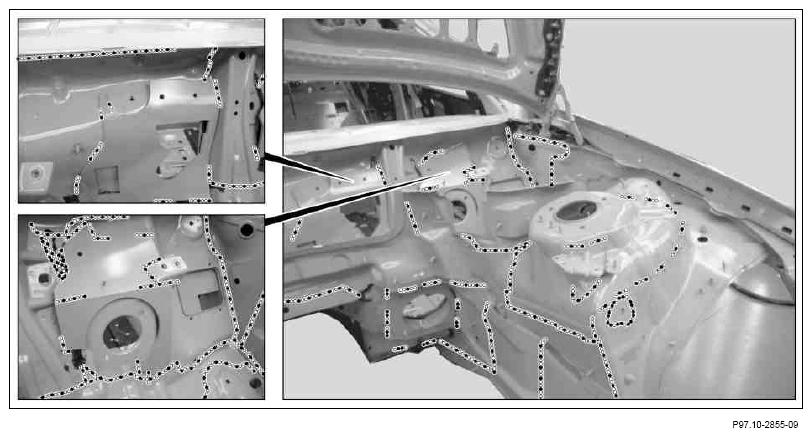

Area of wheel well front end and left water trough

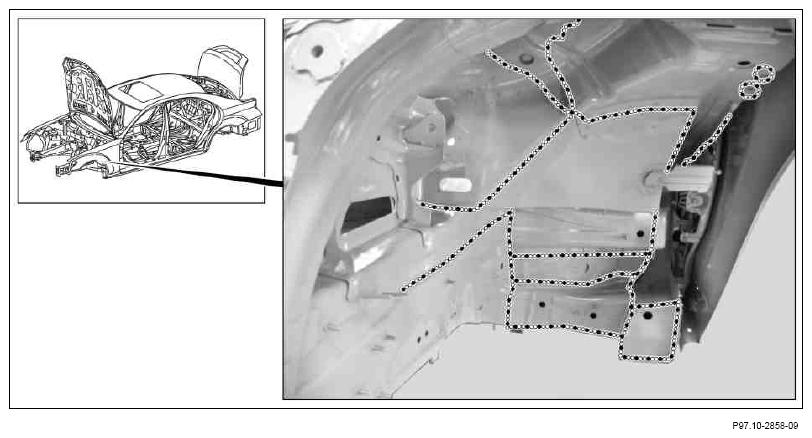

Area of left bottom front wheel well

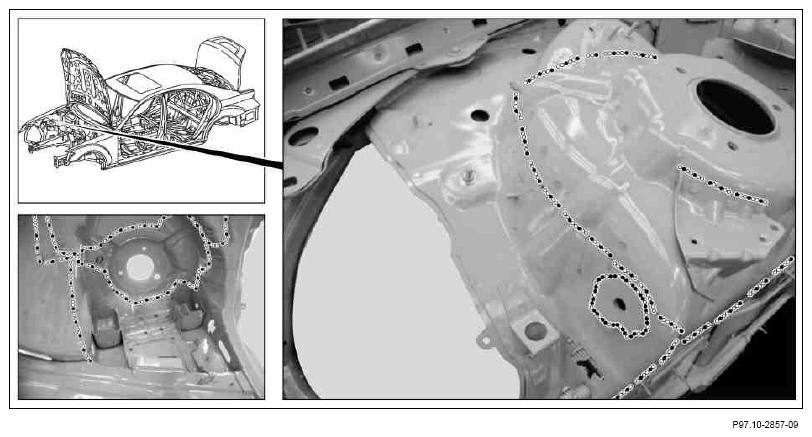

Area of left front wheel well
Area of lower right front wheel well

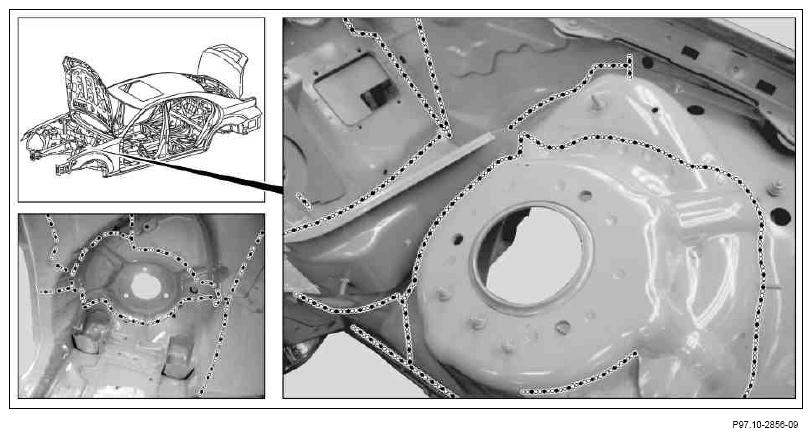

Area of right front wheel well
Area of left front wheel well on pedal floor panel
Area of roof duct windshield padding

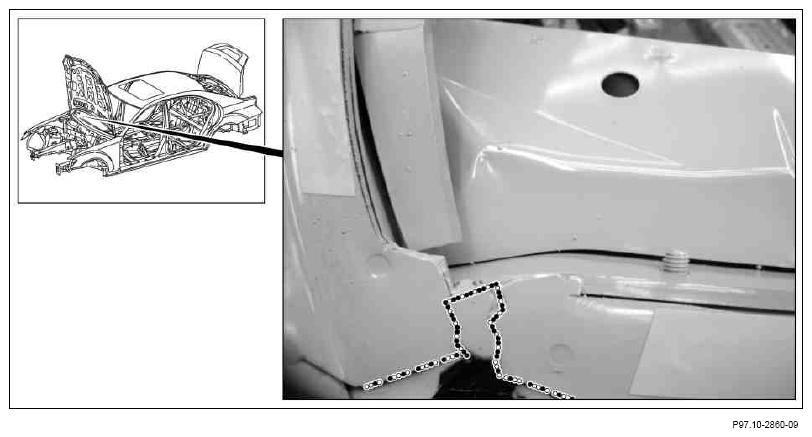

Area of windshield support on crossmember A-pillar below windshield
