Sealing seam after repairing roof - AR97.10-P-4000-05SX

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-01A	Sealant, white, 310 ml, DB supply specification 6069.20	A 001 989 63 20
BR00.45-Z-1041-01A	Seam sealant, sprayable 310 ml	A 002 989 84 20

1 Seal spot welds of area to be repaired with seam sealing material

Insert plastic plugs and rubber grommets with sealing compound.

Keep sealant out of threads on weld nuts and threaded bolts by masking or covering with cardboard sleeves. Also keep drain openings and contact surfaces for axle attachments, windows and detachable parts free of sealant.

It is necessary to seal accessible spot weld flanges on both sides. If accessible from one side, only seal corresponding surface. Observe standard seals!

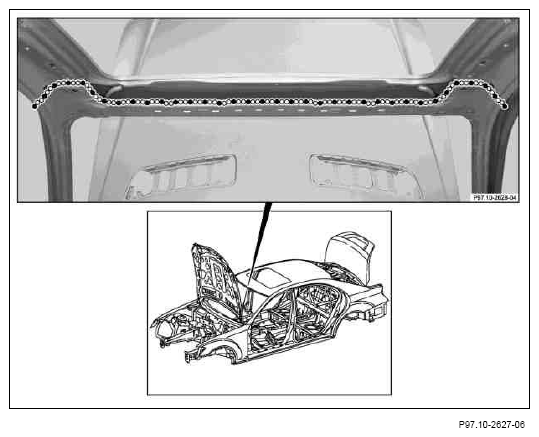

Area of front inner roof frame with center roof paneling, shown on model 221

Fig 1: Identifying Front Inner Roof Frame With Center Roof Paneling Seam Sealing Area

Courtesy of MERCEDES-BENZ USA

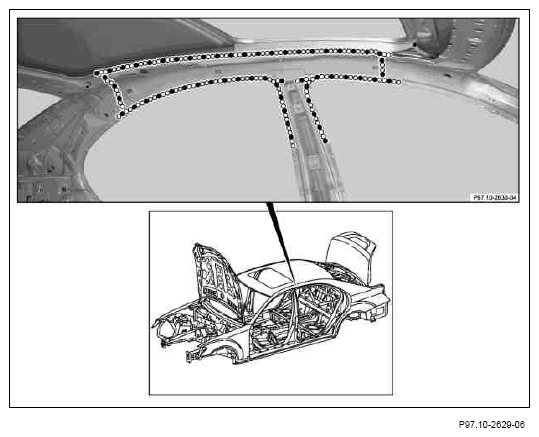

Area of inner side roof frame with side roof paneling, shown on left side of vehicle on model 221

Fig 2: Identifying Inner Side Roof Frame With Side Roof Paneling Seam Sealing Area

Courtesy of MERCEDES-BENZ USA

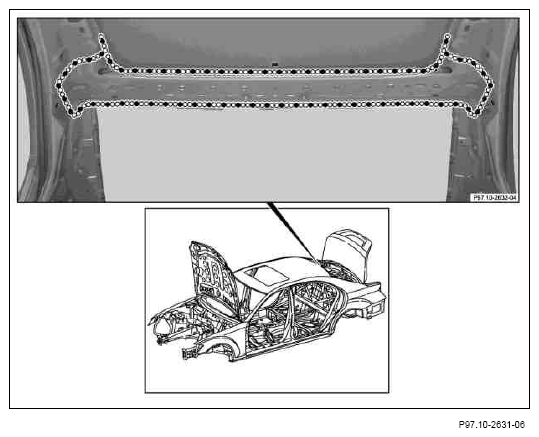

Area of rear inner roof frame with center roof paneling, shown on model 221

Fig 3: Identifying Rear Inner Roof Frame With Center Roof Paneling Seam Sealing Area

Courtesy of MERCEDES-BENZ USA

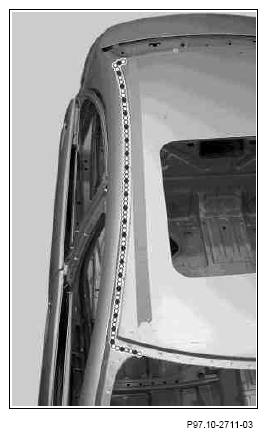

Area of outer roof paneling and center roof paneling, shown on right side of vehicle on model 221

Fig 4: Identifying Outer Roof Paneling And Center Roof Paneling Seam Sealing Area

Courtesy of MERCEDES-BENZ USA
