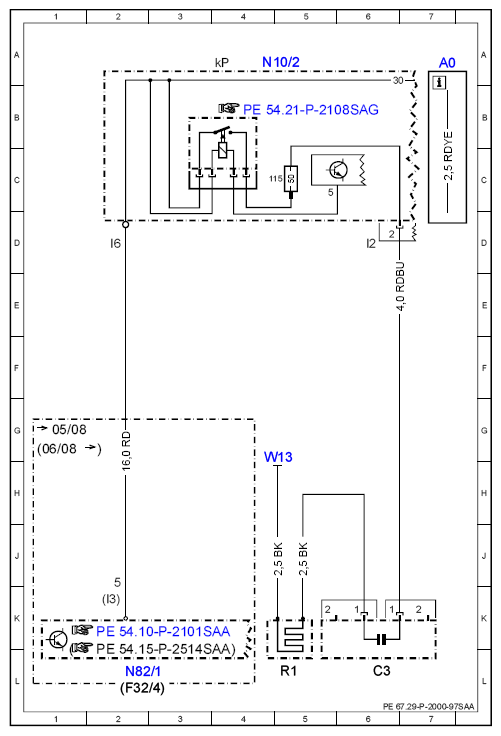

Electric wiring diagram for heated rear window - PE67.29-P-2000-97SAA
| Code: | Designation: | Position: |
| A0 | Color code key | 7A |
| C3 | Rear window interference suppression capacitor | 6L |
| F32/4 | Interior prefuse box | 2L |
| N10/2 | Rear SAM control unit with fuse and relay module | 4A |
| N10/2f115 | Fuse 115 | 4C |
| N10/2kP | Heated rear window relay | 4A |
| N82/1 | Vehicle power supply control unit | 2L |
| R1 | Heated rear window | 5L |
| W13 | Ground (heated rear window) | 4H |
