AIRmatic with ADS control unit, component description - GF32.22-P-5108LE

MODEL 221.0/1 except CODE (487) Active Body Control (ABC) as of Model Year 2009 up to Model Year 2010/modification year 08,/modification year 09 model refinement package

MODEL 221.1 with CODE (Z07) Top protection except CODE (487) Active Body Control (ABC) as of Model Year 2009/modification year 08

MODEL 216.3 with CODE (489) AIRMATIC (air suspension with continuous damper adjustment) as of Model Year 2009 up to Model Year 2010/modification year 08,/modification year 09

Shown on model 221.0

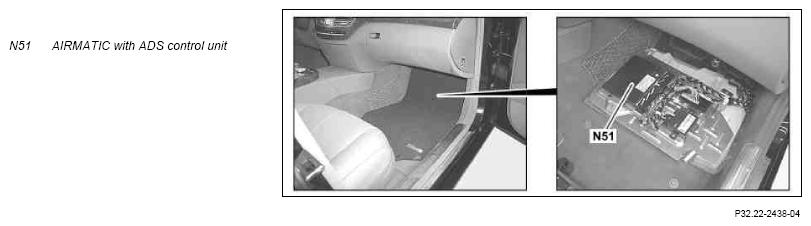

Fig 1: Identifying AIRMATIC With ADS Control Unit - Shown On Model 221.0

Courtesy of MERCEDES-BENZ USA

Location

The AIRMATIC with ADS control unit is located on the control unit retaining plate in the front passenger footwell.

Task

The tasks of the AIRMATIC with ADS control unit are as follows:

Reading in of sensors, pickups and signals
Evaluation of input factors
Actuation of components

Reading in of sensors, pickups and signals

The input factors are read in with the following connections:

Direct line
Chassis CAN (CAN E)

Direct line

The following components are read in via a direct line:

Rear axle level sensor (B22/3)
Left front level sensor (B22/8)
Right front level sensor (B22/9)
Left front body acceleration sensor (B24/3)

Right front body acceleration sensor (B24/4)

Right rear body acceleration sensor (B24/6)

AIRmatic pressure sensor (Y36/6b1)

Chassis CAN

The signals are read in by the AIRMATIC with ADS control unit via the chassis CAN.

The functions resulting therefrom are described in the corresponding function descriptions (see block diagram or function schematic).

Evaluation of input factors

The input factors are evaluated by the microprocessor and the corresponding components are actuated.

Actuation of components

Components are actuated with the following connection:

Direct line

Direct line

The following components are actuated via a direct line:

Air suspension compressor relay (N10/1kB) for actuating the AIRMATIC compressor unit (A9/1) with integrated AIRmatic pressure reduction valve (A9/1y1)
Level control valve unit (Y36/6) with following components:
- Left front level control valve (Y36/6y1)
- Right front level control valve (Y36/6y2)
  - Left rear level control valve (Y36/6y3)
- Right rear level valve (Y36/6y4)
- AIRMATIC central reservoir charge valve (Y36/6y5)
- Left front axle damping valve unit (Y51) with following components:
  - Solenoid valve 1, left front (Y51y1)
  - Solenoid valve 2, left front (Y51y2)
- Right front axle damping valve unit (Y52) with following components:
  - Solenoid valve 1, front right (Y52y1)
  - Solenoid valve 2, front right (Y52y2)
- Left rear axle damping valve unit (Y53) with following components:
  - Solenoid valve 1, rear left (Y53y1)
  - Solenoid valve 2, rear left (Y53y2)
- Right rear axle damping valve unit (Y54) with following components:
  - Solenoid valve 1, rear right (Y54y1)
  - Solenoid valve 2, rear right (Y54y2)

	Wiring diagram of AIRmatic control unit	Model 221	PE32.22-P-2101-99SAA
		Model 216	PE32.22-P-2101-99CAA
