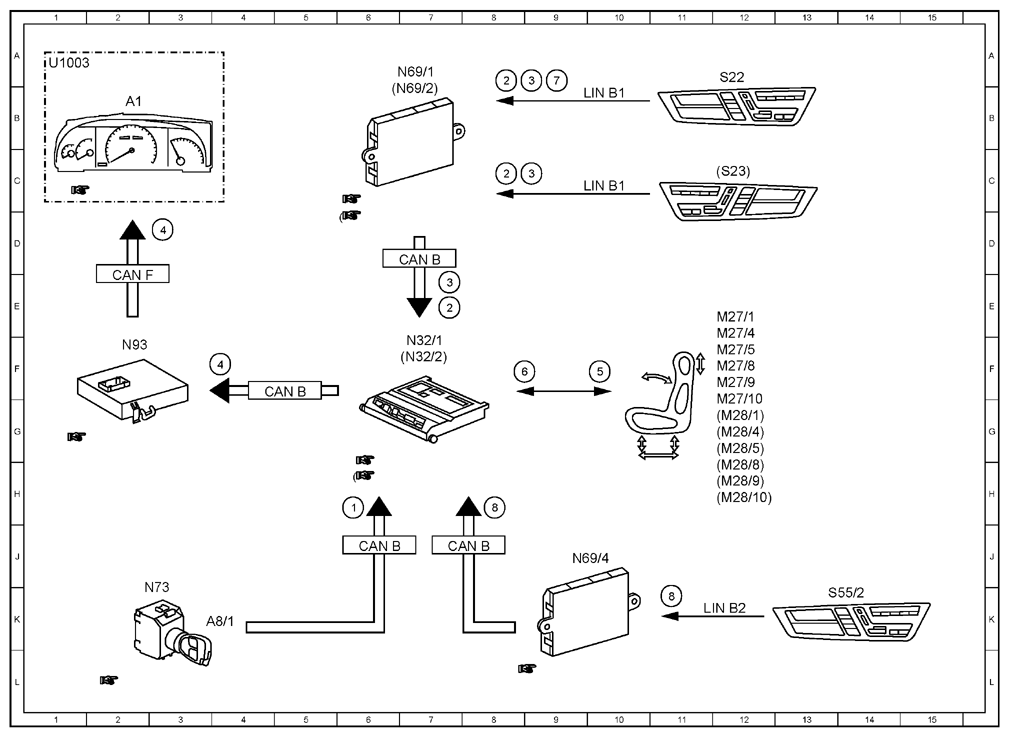

| 1 |
Circuit 15R (for normalization), status ON and circuit 50 (for adjustment), status OFF |
6H |
| 2 |
Manual adjustment or memory function, request |
8A |
| 2 |
Manual adjustment or memory function, request |
7E |
| 2 |
Manual adjustment or memory function, request |
8C |
| 3 |
Store memory positions, request |
7E |
| 3 |
Store memory positions, request |
9A |
| 3 |
Store memory positions, request |
9C |
| 4 |
Acknowledgement tone after memory positions stored successfully, request |
4F |
| 4 |
Acknowledgement tone after memory positions stored successfully, request |
3D |
| 5 |
Seat adjustment motors, actuation |
10F |
| 6 |
Hall sensors, signal |
8F |
| 7 |
Front passenger seat operation from driver seat, request |
9A |
| 8 |
Front passenger seat operation from right rear seat, request |
8H |
| 8 |
Front passenger seat operation from right rear seat, request |
11K |
| A1 |
Instrument cluster |
2B |
| A8/1 |
Transmitter key |
4K |
| CAN B |
Interior CAN |
7D |
| CAN B |
Interior CAN |
7J |
| CAN B |
Interior CAN |
6J |
| CAN B |
Interior CAN |
5F |
| CAN F |
Central CAN |
2E |
| LIN B1 |
Front door LIN |
10B |
| LIN B1 |
Front door LIN |
10C |
| LIN B2 |
Rear door LIN |
12K |
| M27/1 |
Left front seat fore/aft adjustment motor |
12E |
| M27/10 |
Left front seat height adjustment motor |
12G |
| M27/4 |
Left front head restraint motor |
12F |
| M27/5 |
Left front backrest angle adjustment motor |
12F |
| M27/8 |
Left front seat cushion fore/aft motor |
12F |
| M27/9 |
Left front seat cushion inclination motor |
12F |
| M28/1 |
Right front seat fore/aft adjustment motor |
12G |
| M28/1 |
Right front seat fore/aft adjustment motor |
|
| M28/10 |
Right front seat height adjustment motor |
12H |
| M28/10 |
Right front seat height adjustment motor |
|
| M28/4 |
Right front head restraint motor |
12G |
| M28/4 |
Right front head restraint motor |
|
| M28/5 |
Right front backrest angle adjustment motor |
12G |
| M28/5 |
Right front backrest angle adjustment motor |
|
| M28/8 |
Right front seat cushion fore/aft motor |
12H |
| M28/8 |
Right front seat cushion fore/aft motor |
|
| M28/9 |
Right front seat cushion inclination motor |
12H |
| M28/9 |
Right front seat cushion inclination motor |
|
| N32/1 |
Left front seat control unit |
7F |
| N32/2 |
Right front seat control unit |
7F |
| N69/1 |
Left front door control unit |
7A |
| N69/2 |
Right front door control unit |
7B |
| N69/4 |
Right rear door control unit |
9J |
| N73 |
EIS [EZS] control unit |
3K |
| N93 |
Central gateway control unit |
2F |
| S22 |
Left front seat operation switch group |
12A |
| S23 |
Right front seat operation switch group |
12C |
| S55/2 |
Right rear seat operation switch group |
14K |
| U1003 |
Valid for memory package, electrically adjustable front seats as of model year 2008 |
1A |
