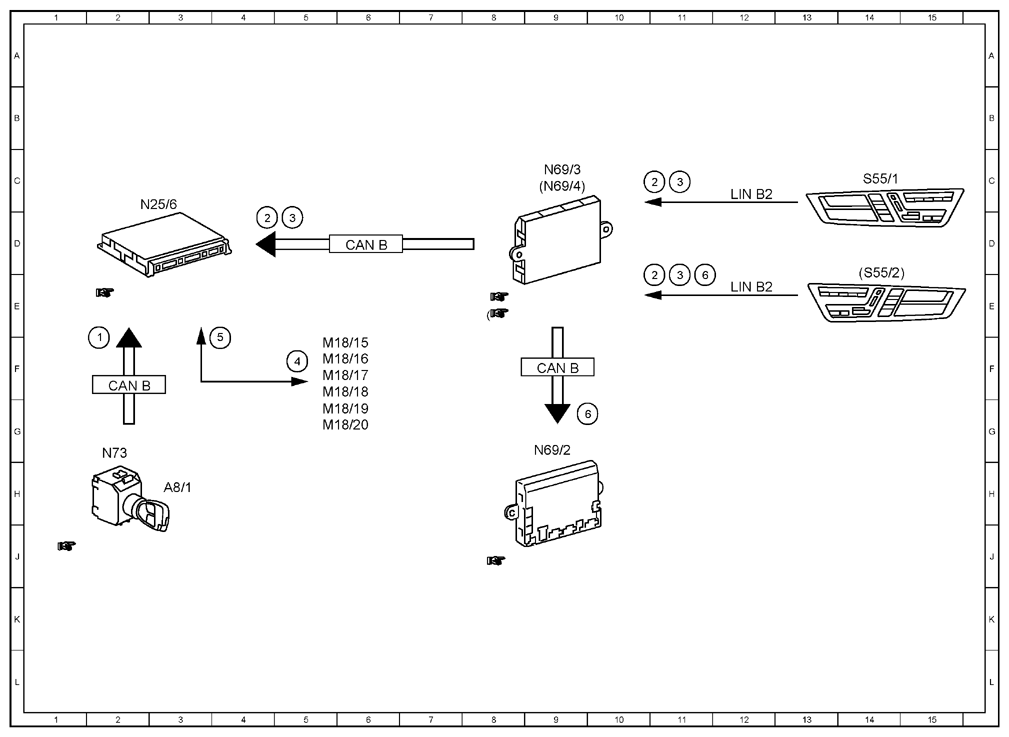

| 1 |
Circuit 15R (for normalization), status ON and circuit 50 (for adjustment), status OFF |
2F |
| 2 |
Manual adjustment or memory function, request |
11C |
| 2 |
Manual adjustment or memory function, request |
11E |
| 2 |
Manual adjustment or memory function, request |
4D |
| 3 |
Store memory positions, request |
11C |
| 3 |
Store memory positions, request |
11E |
| 3 |
Store memory positions, request |
5D |
| 4 |
Seat adjustment motors, actuation |
5F |
| 5 |
Hall sensors, signal |
|
| 6 |
Front passenger seat operation from right rear seat, request |
11E |
| 6 |
Front passenger seat operation from right rear seat, request |
9G |
| A8/1 |
Transmitter key |
3H |
| CAN B |
Interior CAN |
9F |
| CAN B |
Interior CAN |
6D |
| CAN B |
Interior CAN |
2F |
| LIN B2 |
Rear door LIN |
12C |
| LIN B2 |
Rear door LIN |
12E |
| M18/15 |
Left rear head restraint inclination adjustment motor |
5F |
| M18/16 |
Right rear head restraint inclination adjustment motor |
5F |
| M18/17 |
Left rear seat fore/aft adjustment motor |
5F |
| M18/18 |
Right rear seat fore/aft adjustment motor |
5F |
| M18/19 |
Left rear seat cushion inclination adjustment motor |
5G |
| M18/20 |
Right rear seat cushion inclination adjustment motor |
5G |
| N25/6 |
Rear seats control unit |
3C |
| N69/3 |
Rear left door control unit |
9C |
| N69/4 |
Right rear door control unit |
9C |
| N73 |
EIS [EZS] control unit |
2G |
| S55/1 |
Left rear seat operation switch group |
14C |
| S55/2 |
Right rear seat operation switch group |
14E |
