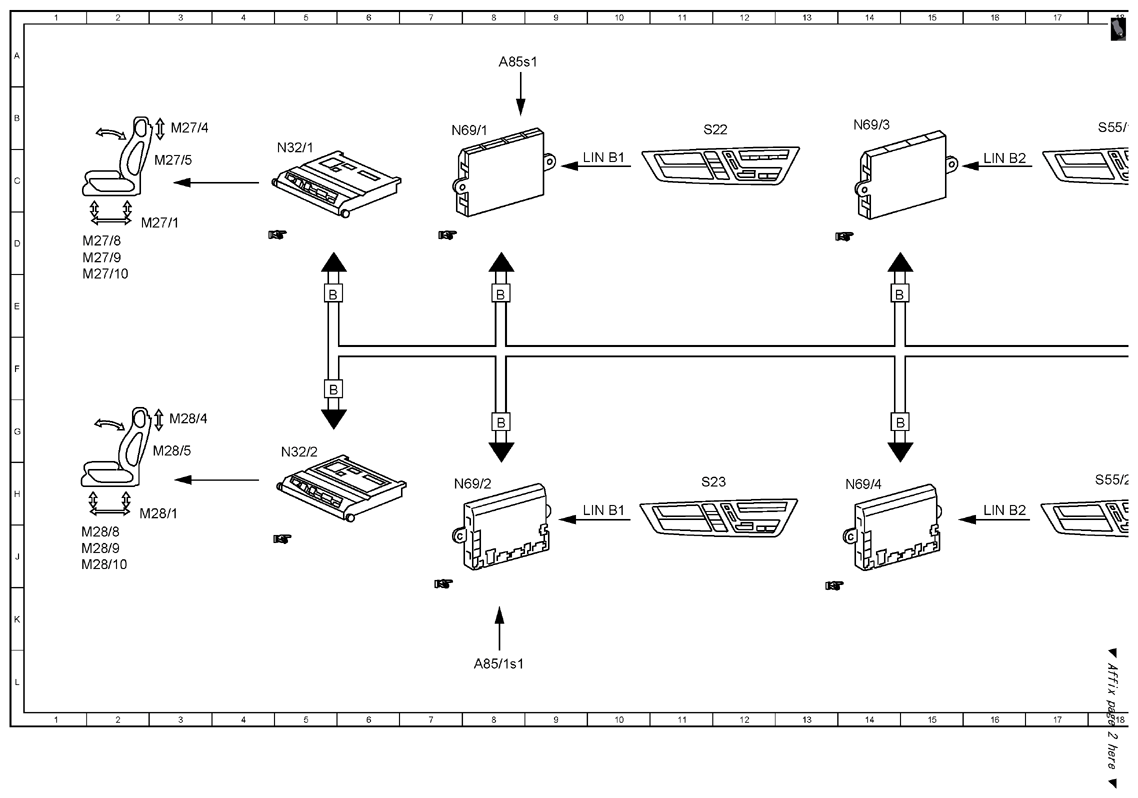

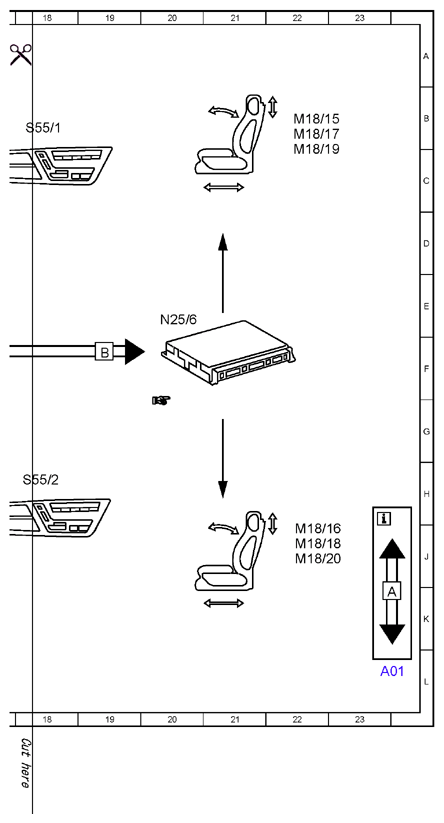

| A01 |
Explanation of CAN and LIN-Bus |
|
| A85/1s1 |
Right front rotary tumbler switch |
8L |
| A85s1 |
Left front rotary tumbler switch |
8A |
| LIN B1 |
Front door LIN |
|
| LIN B1 |
Front door LIN |
|
| LIN B2 |
Rear door LIN |
|
| LIN B2 |
Rear door LIN |
|
| M18/15 |
Left rear head restraint inclination adjustment motor |
22B |
| M18/16 |
Right rear head restraint inclination adjustment motor |
22J |
| M18/17 |
Left rear seat fore/aft adjustment motor |
22B |
| M18/18 |
Right rear seat fore/aft adjustment motor |
22J |
| M18/19 |
Left rear seat cushion inclination adjustment motor |
22C |
| M18/20 |
Right rear seat cushion inclination adjustment motor |
22J |
| M27/1 |
Left front seat fore/aft adjustment motor |
3D |
| M27/10 |
Left front seat height adjustment motor |
1E |
| M27/4 |
Left front head restraint motor |
3B |
| M27/5 |
Left front backrest angle adjustment motor |
3C |
| M27/8 |
Left front seat cushion fore/aft motor |
1D |
| M27/9 |
Left front seat cushion inclination motor |
1D |
| M28/1 |
Right front seat fore/aft adjustment motor |
3H |
| M28/10 |
Right front seat height adjustment motor |
1J |
| M28/4 |
Right front head restraint motor |
3G |
| M28/5 |
Right front backrest angle adjustment motor |
3G |
| M28/8 |
Right front seat cushion fore/aft motor |
1J |
| M28/9 |
Right front seat cushion inclination motor |
1J |
| N25/6 |
Rear seats control unit |
20E |
| N32/1 |
Left front seat control unit |
5C |
| N32/2 |
Right front seat control unit |
5G |
| N69/1 |
Left front door control unit |
7B |
| N69/2 |
Right front door control unit |
8H |
| N69/3 |
Rear left door control unit |
14B |
| N69/4 |
Right rear door control unit |
14H |
| S22 |
Left front seat operation switch group |
11B |
| S23 |
Right front seat operation switch group |
11H |
| S55/1 |
Left rear seat operation switch group |
18B |
| S55/2 |
Right rear seat operation switch group |
18H |
