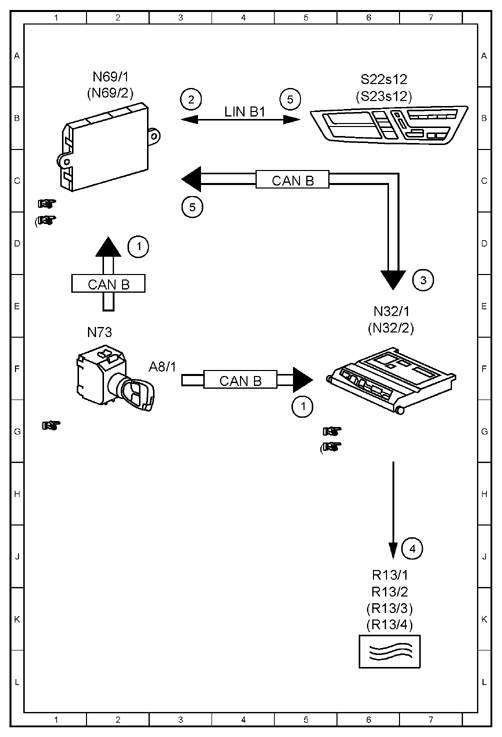

| 1 |
Circuit 15, status |
2D |
| 1 |
Circuit 15, status |
5G |
| 2 |
Heated seat switch, status |
3B |
| 3 |
Seat heater, request |
7E |
| 4 |
Seat heater, actuation |
7J |
| 5 |
Seat heater status indication, signal |
5B |
| 5 |
Seat heater status indication, signal |
3C |
| A8/1 |
Transmitter key |
3F |
| CAN B |
Interior CAN |
4F |
| CAN B |
Interior CAN |
2E |
| CAN B |
Interior CAN |
5C |
| LIN B1 |
Front door LIN |
4B |
| N32/1 |
Left front seat control unit |
6E |
| N32/2 |
Right front seat control unit |
6E |
| N69/1 |
Left front door control unit |
2A |
| N69/2 |
Right front door control unit |
2B |
| N73 |
EIS [EZS] control unit |
2F |
| R13/1 |
Left front seat heated cushion |
6J |
| R13/2 |
Left front backrest heated cushion |
6K |
| R13/3 |
Right front seat heated cushion |
6K |
| R13/4 |
Right front backrest heated cushion |
6K |
| S22s12 |
Heated seat switch |
6A |
| S23s12 |
Heated seat switch |
6B |
